Modular spreader frames for four-point lifting applications, combining Multisec corner units with the same interchangeable struts used throughout the Modular Spreader Beam range. Available in capacities up to 250 tonnes and frame spans up to 16 metres for offshore, infrastructure, industrial and heavy lifting projects
Modular Lifting Frames Designed & Manufactured In The UK
Multisec designs and manufactures modular lifting frames in Middlesbrough, UK, for heavy lifting applications where load stability, controlled load distribution and four-point lifting geometry are critical. The MULTI-F range provides a configurable UK-manufactured route for rectangular loads, modules, skids, fabricated structures and other projects requiring four controlled lifting points.
The system uses model-specific Multisec corner points with compatible modular struts from the corresponding Multisec Spreader Beam series, allowing the frame geometry to be configured for different lifting arrangements and load dimensions.
Available with Working Load Limits up to 250 tonnes and frame spans up to 16 metres, the system provides a practical lifting frame solution for oversized loads, fabricated structures, offshore equipment and complex industrial lifting operations.
Four-Point Load Control
Distributes lifting forces across four lifting points to support wider, larger and more complex loads.
Modular Frame Configuration
Corner points and interchangeable modular struts allow frame geometry to be adapted for different lifting requirements.
Heavy-Lift Performance
Engineered for demanding offshore, marine, infrastructure and industrial lifting applications.
Modular Spreader
Frame Range

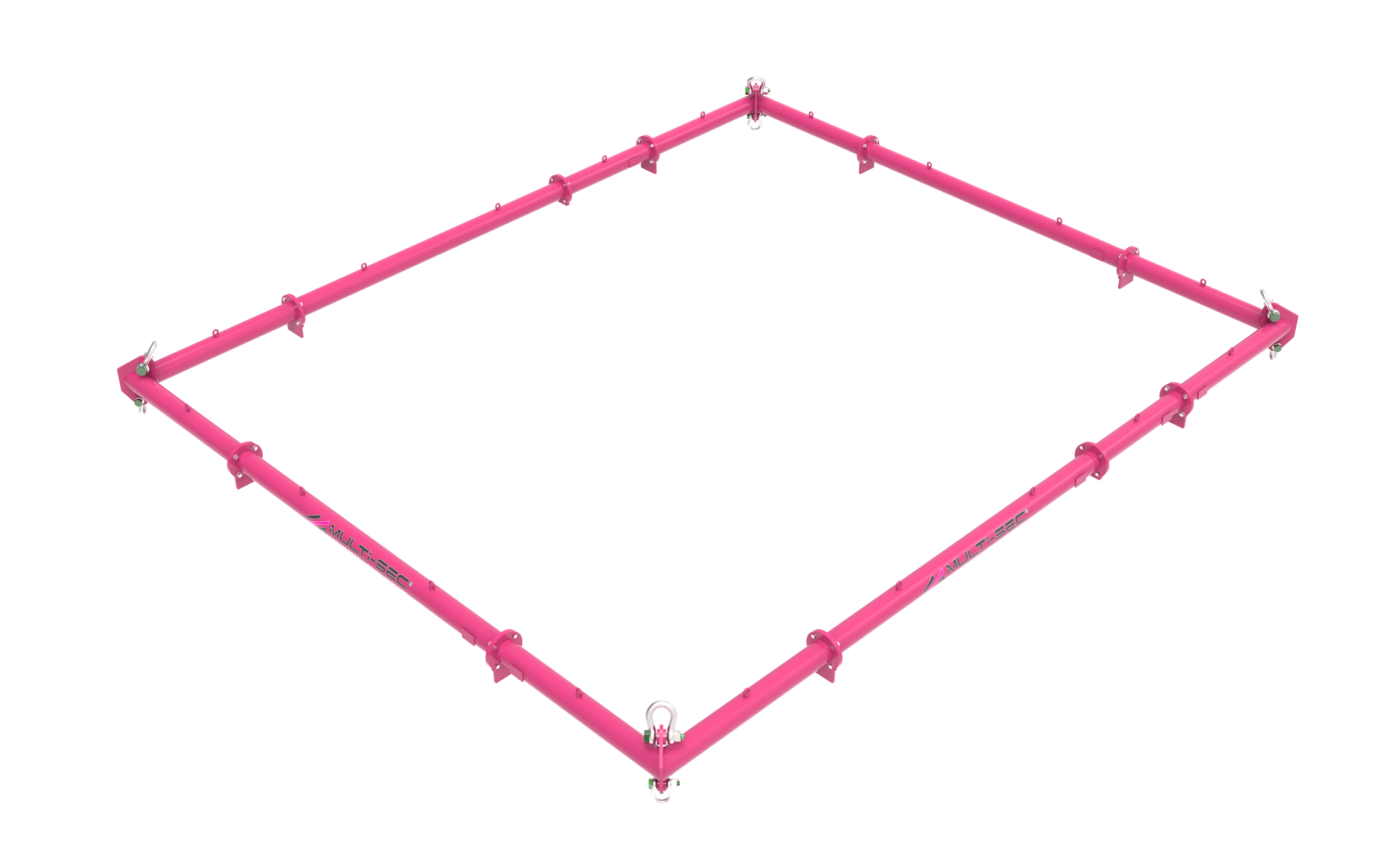

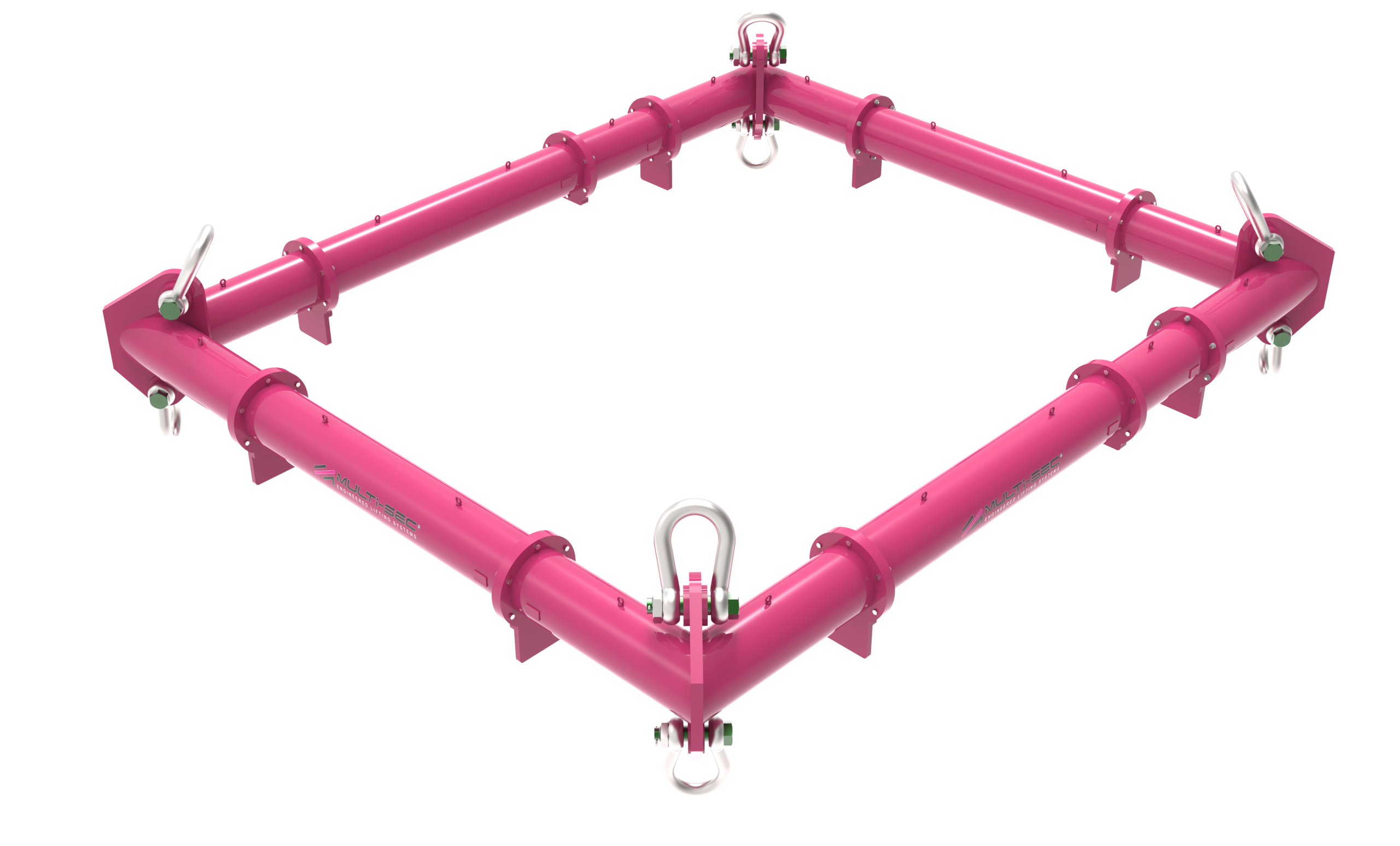

Choose from standard Modular Spreader Frame systems from 13 tonnes to 250 tonnes. Each model is selected by required frame span, Working Load Limit and sling-to-vertical angle.
One Modular System.
Multiple Frame Configurations.

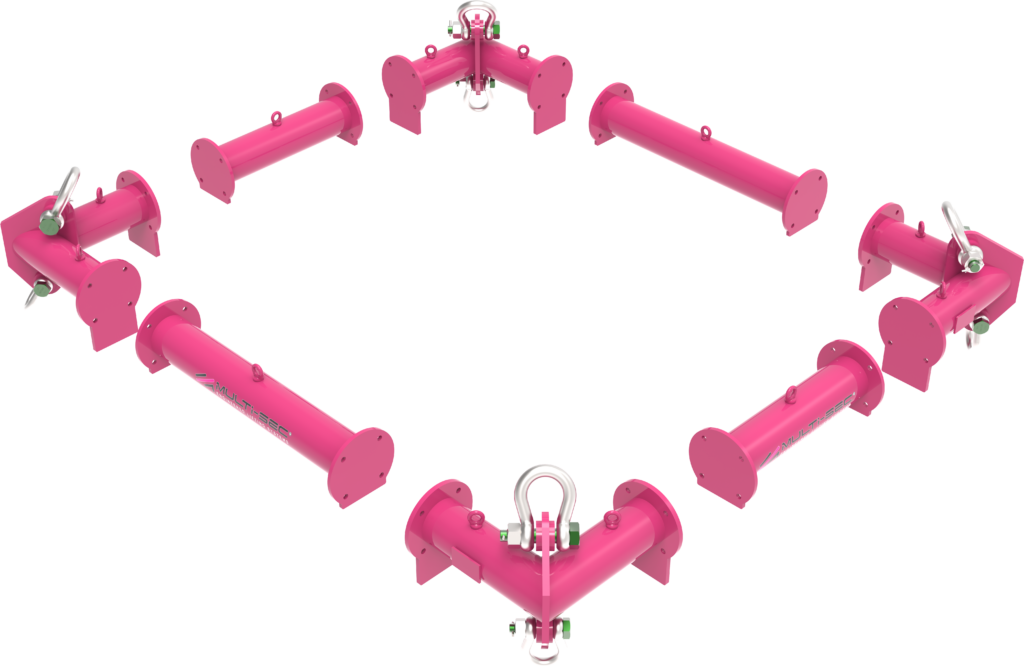

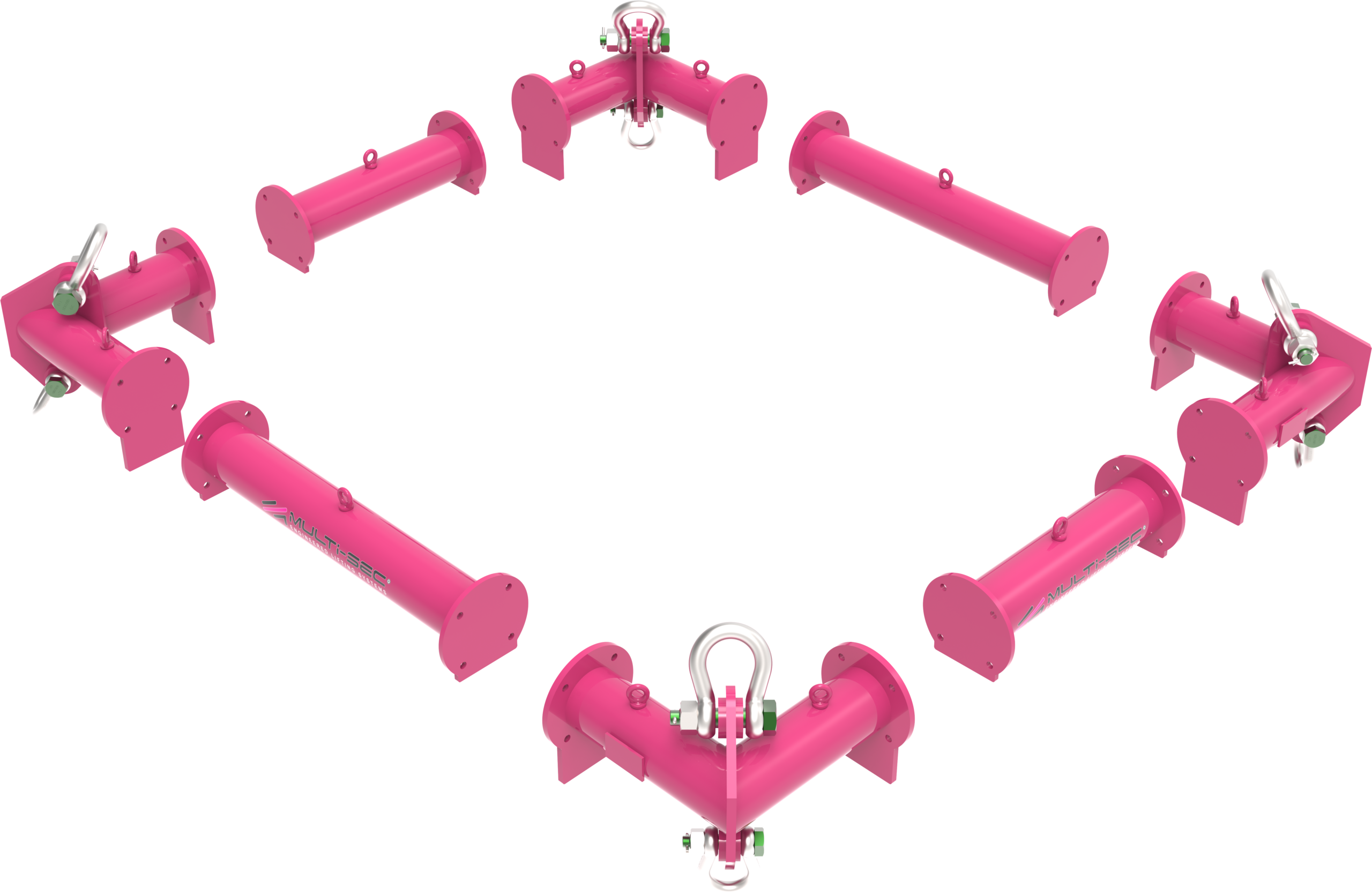

The Multisec Modular Spreader Frame system combines engineered corner units with the same interchangeable modular struts used across the Modular Spreader Beam range. By selecting the required longitudinal and transverse strut combinations, lifting teams can create configurable four-point lifting frames for different spans, capacities and load geometries.
Corner Units
Four engineered corner units form the connection points of the modular lifting frame, with upper and lower lifting points for rigging arrangements.
Modular Struts
Longitudinal and transverse struts are selected from the compatible struts for the corresponding Multisec series to create the required frame dimensions.
Configurable Geometry
Frame length and width can be configured to suit load dimensions, lifting centres and project-specific lifting requirements.

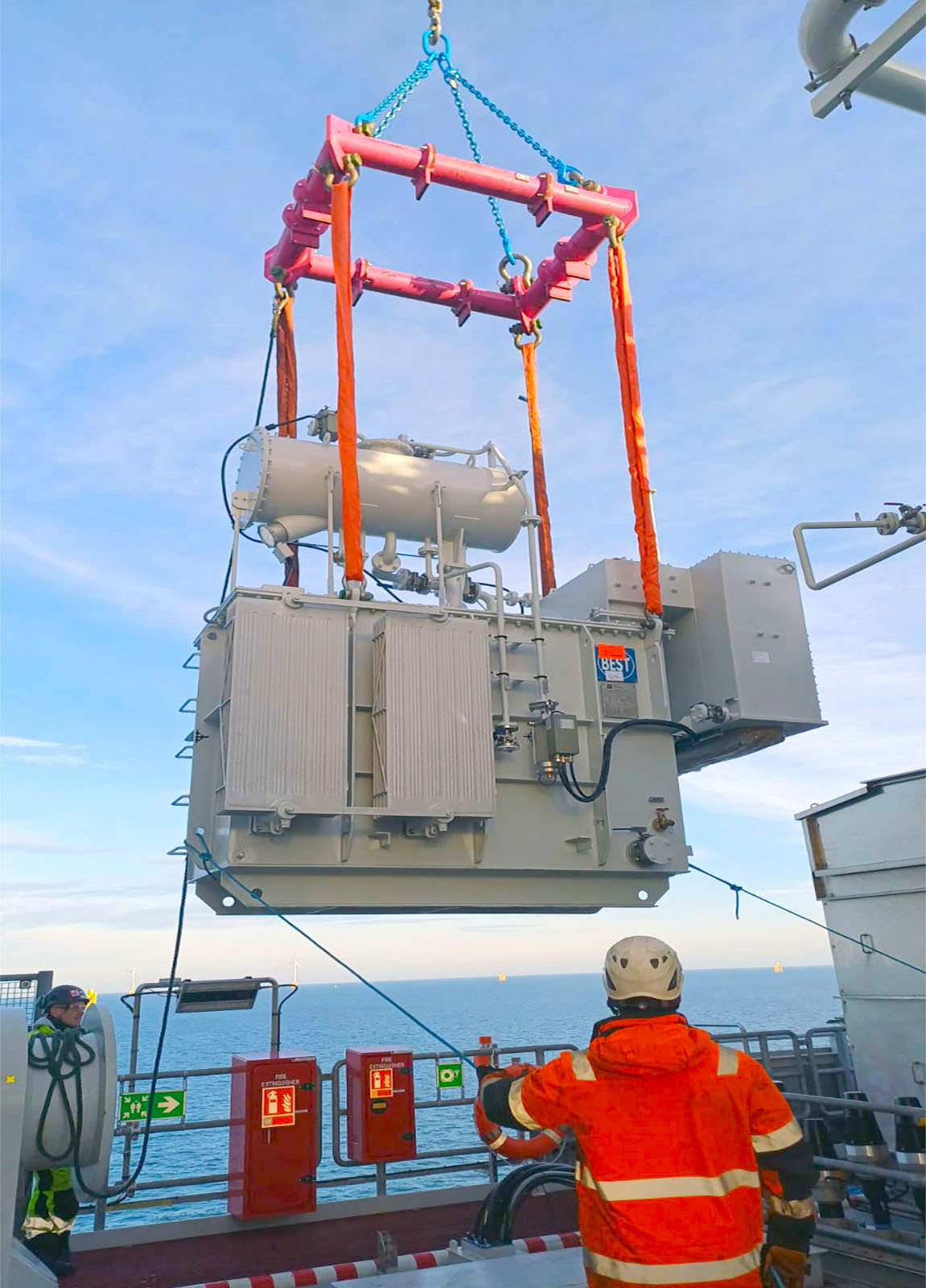

Offshore Wind Installation
Modular Spreader Frame used for a controlled four-point lift in a marine project environment.
Common Applications For Modular Spreader Frames
Modular Spreader Frames are used where load stability, multiple lifting points or load geometry make a conventional lifting beam arrangement unsuitable.
Fabricated Structures
Steel fabrications, assemblies and modules requiring stable four-point lifting.
Tanks & Vessels
Pressure vessels, storage tanks and process equipment where load stability is critical.
Offshore Equipment
Modules, skids and fabricated equipment used within offshore and marine environments.
Infrastructure Components
Bridge sections, precast elements and large civil engineering structures.
Process Equipment
Industrial plant, packaged systems and heavy machinery installations.
Heavy Industrial Lifts
Large or irregular loads where multiple lifting points improve load control.
Our engineering team can review your lifting arrangement and recommend whether a Modular Spreader Frame, Modular Spreader Beam or Multi-Point Lifting Beam is most suitable.
Request Advice
Modular Spreader Frame
Capabilities At A Glance

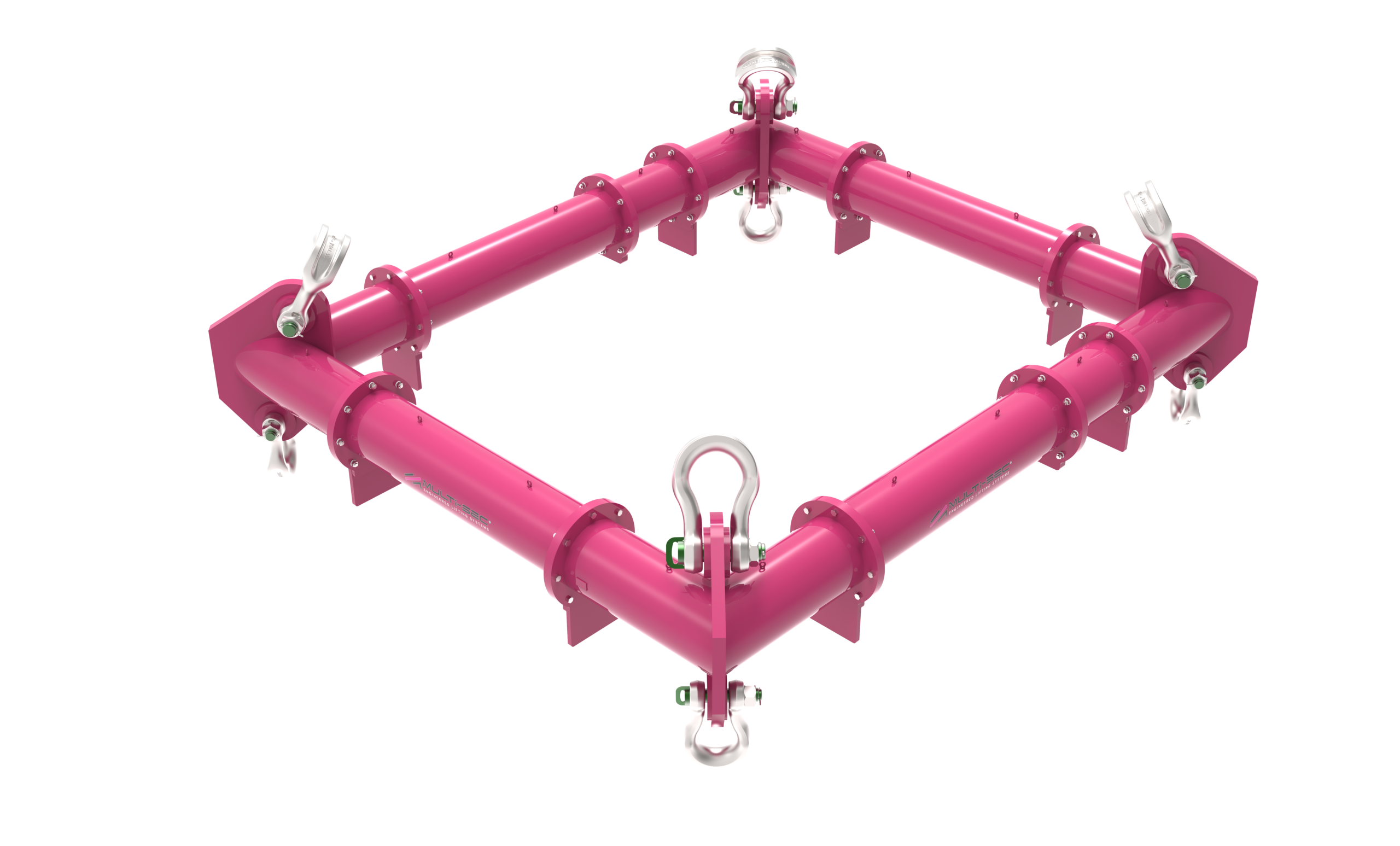

The Multisec Modular Spreader Frame system provides a configurable four-point lifting solution for applications where load stability, controlled load distribution and adaptable frame geometry are required.
Interchangeable modular struts and corner units
Configurable frame dimensions to suit different lifting arrangements
Four-point lifting configuration for improved load control
Reduced transport and storage requirements compared to dedicated frames
Model-specific capacity data defines allowable frame length, width and Working Load Limit
Upper sling angle below 45° STV, with 30° STV preferred
Suitable for offshore, infrastructure and heavy industrial lifting projects
Alternative capacities, frame dimensions and lifting arrangements can be developed by the Multisec engineering team to suit specific project requirements.
Request a Modular Lifting Frame Quote
Whether you require a compact 13 tonne beam for routine lifting operations or a 250 tonne DNV Type Approved system for major heavy-lift projects, our engineering team can help identify the most suitable Modular Spreader Beam configuration for your lifting application.
Technical Support
- Advice on frame selection, dimensions and four-point lifting arrangements.
- Guidance on modular frame configurations and applicable capacity data.
- Verification of Working Load Limit, lift geometry and lifting centres.
- Support from experienced lifting engineers throughout the enquiry process.
Modular Spreader Frame FAQs
Answers to common questions about Modular Spreader Frames, four-point lifting arrangements, capacities, configurations and project requirements.
What is a Modular Spreader Frame?
A Modular Spreader Frame is a configurable four-point lifting frame designed to provide improved load stability and controlled load distribution. The system combines modular struts with dedicated corner units to create frame configurations suitable for a wide range of lifting applications.
When should a Modular Spreader Frame be used?
Modular Spreader Frames are commonly used when a conventional lifting beam arrangement is unsuitable due to load geometry, stability requirements or multiple lifting points. They are often selected for offshore equipment, fabricated structures, vessels, infrastructure components and other large or irregular loads.
What capacities are available?
The Multisec Modular Spreader Frame range is available in capacities from 13 tonnes up to 250 tonnes, with multiple frame configurations available depending on project requirements.
What frame spans are available?
Standard Modular Spreader Frame configurations provide spans up to 16 metres. Alternative frame dimensions can be reviewed by our engineering team for specific lifting applications.
Can Modular Spreader Frames be customised?
Yes. Modular Spreader Frames can be configured using compatible strut combinations within the selected frame series to suit specific load dimensions, lifting centres and project requirements. Bespoke lifting arrangements can also be reviewed where required.
What top sling angle should be used with a Modular Spreader Frame?
Upper slings should be arranged at less than 45° to vertical. A 30° sling-to-vertical arrangement is preferred, and capacity must be checked for the selected frame geometry and sling angle.
Can corner points and struts from different frame series be mixed?
No. Each corner point is designed for the corresponding Multisec frame and spreader-beam strut range. Components from different series should not be mixed.
Can Modular Spreader Frames be used offshore?
Yes. Modular Spreader Frames are frequently used within offshore, marine, energy and heavy industrial sectors where controlled four-point lifting arrangements are required.
How do I select the correct Modular Spreader Frame?
Selection depends on the load weight, dimensions, lifting centres, centre of gravity, sling arrangement and site conditions. Our engineering team can review your requirements and recommend the most suitable frame configuration.
