250 Tonne Modular
Spreader Frame

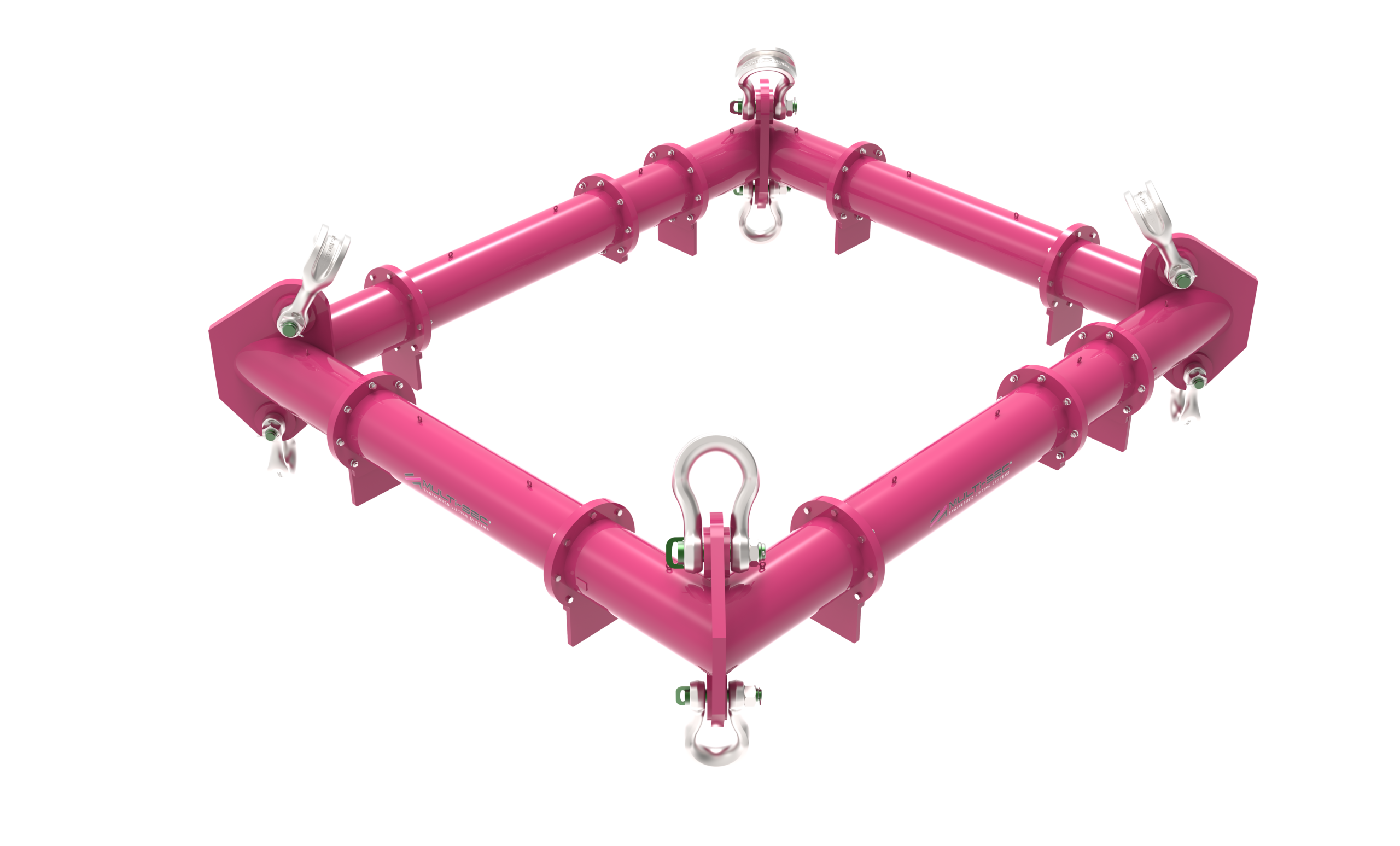

The MULTI-F250 is the largest standard model within the Multisec Modular Spreader Frame range, engineered for demanding four-point lifting operations requiring exceptional stability, strength and configurable lifting geometry. Manufactured using modular corner points and interchangeable spreader beam struts, the standard off-the-shelf range can be configured up to 16m x 16m.
MULTI-F250 Capacity Checker
Enter the required frame length, width and top sling angle to check the available Working Load Limit for that configuration.
MULTI-F250 Capacity Table
Working Load Limit varies with frame length, width and sling arrangement. Select the appropriate sling angle and use the table to check the capacity for your frame configuration.
Capacities shown are based on a maximum 30° STV (Sling to Vertical) and the selected frame dimensions.
MULTI-F250 Load ChartWLL shown in tonnes
| Width / Length | 1m | 2m | 3m | 4m | 5m | 6m | 7m | 8m | 9m | 10m | 11m | 12m | 13m | 14m | 15m | 16m |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1m | 250 | 226 | 226 | 206 | 190 | 177 | 177 | 165 | 165 | 165 | 165 | 165 | 165 | 165 | 165 | 165 |
| 2m | — | 250 | 226 | 226 | 206 | 190 | 190 | 177 | 177 | 177 | 177 | 177 | 177 | 177 | 177 | 177 |
| 3m | — | — | 250 | 226 | 226 | 206 | 206 | 190 | 190 | 190 | 190 | 190 | 190 | 190 | 190 | 190 |
| 4m | — | — | — | 250 | 226 | 226 | 206 | 206 | 206 | 206 | 206 | 206 | 206 | 206 | 206 | 206 |
| 5m | — | — | — | — | 250 | 226 | 226 | 226 | 226 | 226 | 226 | 226 | 226 | 226 | 226 | 226 |
| 6m | — | — | — | — | — | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| 7m | — | — | — | — | — | — | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| 8m | — | — | — | — | — | — | — | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| 9m | — | — | — | — | — | — | — | — | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| 10m | — | — | — | — | — | — | — | — | — | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| 11m | — | — | — | — | — | — | — | — | — | — | 250 | 250 | 250 | 250 | 250 | 250 |
| 12m | — | — | — | — | — | — | — | — | — | — | — | 250 | 250 | 250 | 250 | 250 |
| 13m | — | — | — | — | — | — | — | — | — | — | — | — | 250 | 250 | 250 | 250 |
| 14m | — | — | — | — | — | — | — | — | — | — | — | — | — | 250 | 250 | 250 |
| 15m | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 250 | 250 |
| 16m | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 250 |
Request a MULTI-F250 Quote
Tell us the load, required frame dimensions and sling arrangement and the Multisec team will help confirm the correct configuration for your lift.
Engineering support included
- Assistance selecting the correct frame configuration.
- Advice on sling arrangement, frame geometry and working load limit.
- Guidance on suitable rigging and lifting geometry.
- Project-specific configuration support where required.
MULTI-F250 Technical FAQs
What is the maximum working load of the MULTI-F250?
The maximum Working Load Limit is 250 tonnes. Allowable capacity depends on the selected frame length, width and sling arrangement.
What is the maximum frame size?
The MULTI-F250 can be configured up to 16m x 16m using compatible modular struts and corner units.
How is the frame assembled?
The frame uses four MULTI-F250 corner units with compatible Multi-250 modular struts to form the required rectangular configuration.
Does capacity remain the same at every frame size?
No. Working Load Limit can reduce for some frame geometries, so the applicable capacity data must be checked for the selected length and width.
What shackles are required?
The specified upper shackle is 200Te Sling Shackle BN. The specified lower shackle is 125Te Sling Shackle BN.
Can Multisec check a project-specific lift?
Yes. Send the load, lifting centres, required frame dimensions and sling arrangement to the Multisec team for configuration support.
