What span or size is available?

The MULTI-F50 is available up to 9m x 9m. Allowable capacity depends on the selected span and lifting configuration.

Home/Product Range/Modular Spreader Frames/MULTI-F50

Modular Four-Point Spreader Frame | MULTI-F50

50 Tonne Modular
Spreader Frame

Q: What is the maximum working load of the MULTI-F50?

The MULTI-F50 is rated to 50 tonnes maximum Working Load Limit. Allowable capacity may reduce depending on the selected span and lifting configuration.

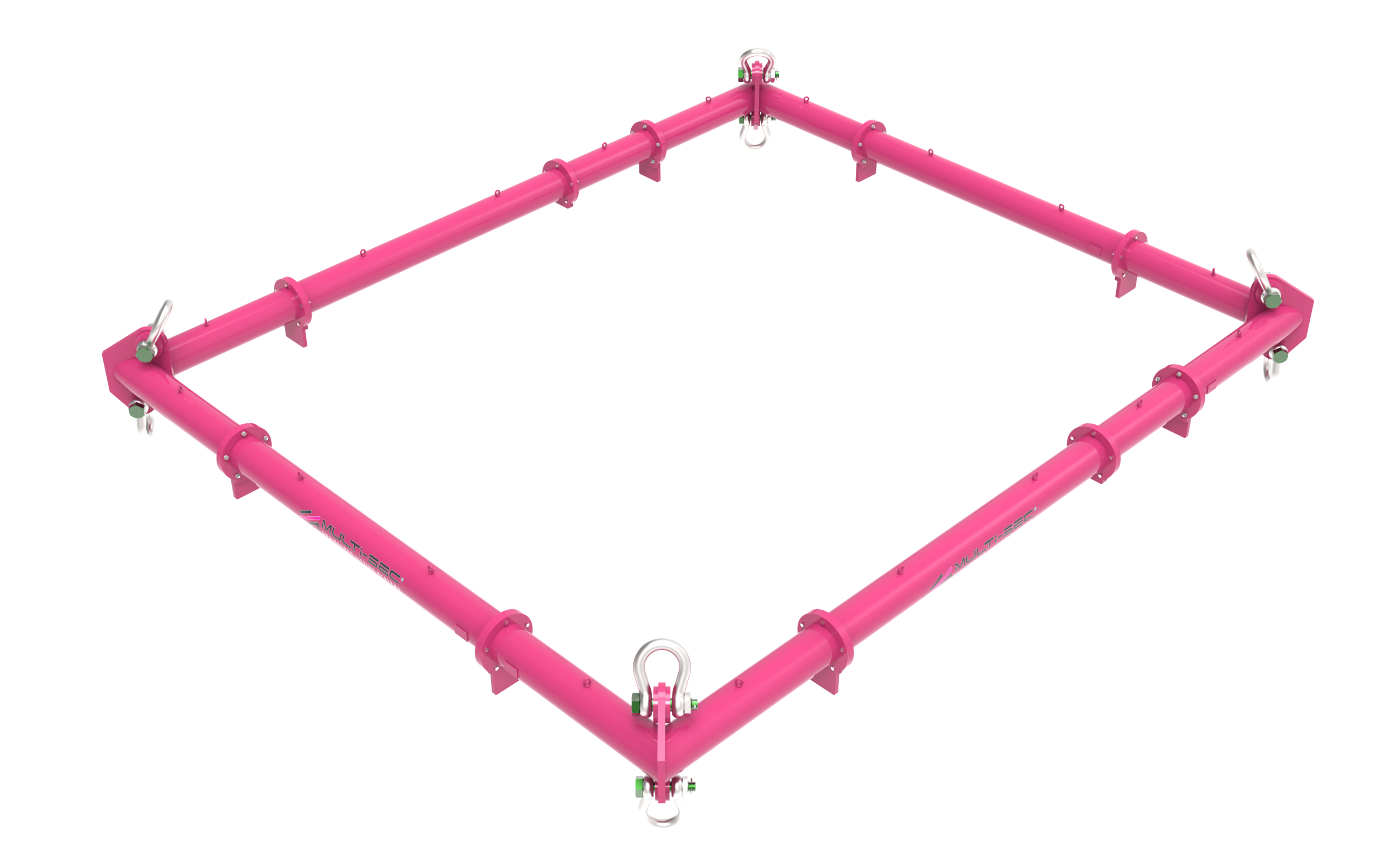

50 tonne Multisec MULTI-F50 modular spreader frame

The MULTI-F50 is a 50 tonne modular spreader frame engineered for four-point lifting applications requiring greater lifting capacity whilst maintaining exceptional load stability. Manufactured using modular corner points and interchangeable spreader beam struts, the frame can be configured up to 9m x 9m.

Request a Quote View Capacity Table

Capacity Checker

MULTI-F50 Capacity Checker

Enter the required frame length, width and top sling angle to check the available Working Load Limit for that configuration.

Frame length (m)

Frame width (m)

Top sling angle

Enter the required frame length and width in whole metres, then select the top sling angle.

Capacity Data

MULTI-F50 Capacity Table

Working Load Limit varies with frame length, width and sling arrangement. Select the appropriate sling angle and use the table to check the capacity for your frame configuration.

Capacity Basis

Capacities shown are based on a maximum 30° STV (Sling to Vertical) and the selected frame dimensions.

MULTI-F50 Load ChartWLL shown in tonnes

Width / Length	1m	2m	3m	4m	5m	6m	7m	8m	9m
1m	50	43	43	43	38	38	38	38	38
2m	—	50	43	43	43	43	43	43	43
3m	—	—	50	50	50	50	50	50	50
4m	—	—	—	50	50	50	50	50	50
5m	—	—	—	—	50	50	50	50	50
6m	—	—	—	—	—	50	50	50	50
7m	—	—	—	—	—	—	50	50	50
8m	—	—	—	—	—	—	—	50	50
9m	—	—	—	—	—	—	—	—	50

Width / Length	1m	2m	3m	4m	5m	6m	7m	8m	9m
1m	50	50	40	30	25	25	25	25	25
2m	—	50	50	50	40	40	30	30	30
3m	—	—	50	50	50	50	50	40	40
4m	—	—	—	50	50	50	50	50	50
5m	—	—	—	—	50	50	50	50	50
6m	—	—	—	—	—	50	50	50	50
7m	—	—	—	—	—	—	50	50	50
8m	—	—	—	—	—	—	—	50	50
9m	—	—	—	—	—	—	—	—	50

50tMaximum WLL

9mMaximum listed span

4Corner points

UKManufactured

Request a Quote

Request a MULTI-F50 Quote

Tell us the load, required frame dimensions and sling arrangement and the Multisec team will help confirm the correct configuration for your lift.

Engineering support included

Assistance selecting the correct frame configuration.
Advice on sling arrangement, frame geometry and working load limit.
Guidance on suitable rigging and lifting geometry.
Project-specific configuration support where required.

Project quotation request forMULTI-F50 Modular Spreader Frame

Contact detailsYour details

Name Email Company Telephone

Lift requirementSpecify the liftGive us what you know. Leave anything you are unsure about blank and our engineering team can advise.

Load weight / required WLL (tonnes, if known) Required frame size, length x width (m) Load lifting points Top Sling Angle Project / lift type Required by Drawing or lift plan Optional. PDF, JPG, PNG or WebP, maximum 10 MB. Project files are stored privately for seven days.

Project informationAnything else we should know?Add dimensions, headroom, centre of gravity, site constraints or certification requirements if relevant.

Additional project details

Technical Support

MULTI-F50 Technical FAQs

What is the maximum working load of the MULTI-F50?

The maximum Working Load Limit is 50 tonnes. Allowable capacity depends on the selected frame length, width and sling arrangement.

What is the maximum frame size?

The MULTI-F50 can be configured up to 9m x 9m using compatible modular struts and corner units.

How is the frame assembled?

The frame uses four MULTI-F50 corner units with compatible Multi-50 modular struts to form the required rectangular configuration.

Does capacity remain the same at every frame size?

No. Working Load Limit can reduce for some frame geometries, so the applicable capacity data must be checked for the selected length and width.

What shackles are required?

The specified upper shackle is 35Te Standard Bow Shackle. The specified lower shackle is 25Te Standard Bow Shackle.

Can Multisec check a project-specific lift?

Yes. Send the load, lifting centres, required frame dimensions and sling arrangement to the Multisec team for configuration support.
