What is the MP-100 multi-point lifting beam used for?

The MP-100 is used for high-capacity lifting operations where loads need to be supported across multiple lifting points. It is commonly used for heavy structural components, large fabricated assemblies, and industrial lifting projects.

Does the MP-100 lose capacity as span increases?

No. The MP-100 maintains its full 100 tonne working load limit across both standard beam lengths when used within approved lifting configurations.

Can the MP-100 be used in different lifting configurations?

Yes. The MP-100 can be used in centre point, spreader, and semi-spreader configurations depending on the lifting requirements.

What is a Multi-Point Lifting Beam?

A Multi-Point Lifting Beam is a below-the-hook lifting device designed to lift a load from multiple lower pick points. By distributing the load across several lifting lugs, the beam improves load distribution, stability and control during lifting operations.

What is a Multi-Lug Beam?

A Multi-Lug Beam is another name for a Multi-Point Lifting Beam. The term refers to the multiple lifting lugs positioned along the beam, allowing loads to be lifted from three or more lower pick points simultaneously.

What is the difference between a standard lifting beam and a Multi-Point Lifting Beam?

A standard lifting beam is usually designed around one or two lower lifting points. A Multi-Point Lifting Beam has multiple lower lifting lugs, allowing the load to be supported from several positions and improving load distribution.

What capacities are available in the Multi-Point Lifting Beam range?

The Multisec Multi-Point Lifting Beam range includes models from MP-13 through to MP-300, with Working Load Limits from 13 tonnes up to 300 tonnes.

What spans are available?

The modular MP-13 to MP-50 range can be configured in 3m, 6m, 9m and 12m arrangements using 3m and 6m beam sections. The MP-100 is available in 6m and 11.5m configurations, while the MP-300 is available as a 10m heavy-lift beam.

Which models use modular 3m and 6m beam sections?

The MP-13, MP-25, MP-34 and MP-50 models use modular 3m and 6m beam sections that can be combined to create 3m, 6m, 9m and 12m beam arrangements.

How are MP-100 and MP-300 different?

MP-100 and MP-300 are higher-capacity Multi-Point Beams developed for heavier lifting requirements. The MP-100 is available in 6m and 11.5m configurations, while the MP-300 is a 300 tonne heavy-lift beam with a 10m span.

What lifting configurations are available?

Multisec Multi-Point Lifting Beams can be configured as Centre Point, Semi-Spreader and Spreader arrangements depending on the model, capacity and lifting application.

What is a Centre Point Lift?

A Centre Point Lift uses a single upper lifting point with multiple lower lifting lugs. This arrangement is commonly used where headroom is limited or rigging simplicity is important.

What is a Semi-Spreader Arrangement?

A Semi-Spreader Arrangement is a flexible low-headroom lifting setup that allows loads to be lifted from opposing ends or multiple points along the beam.

What is a Spreader Arrangement?

A Spreader Arrangement uses angled top slings connected to top lifting points, helping support wider load spans and standard two-point lifting applications.

Why use multiple lower lifting points?

Multiple lower lifting points help distribute forces more evenly across the load, improving stability, reducing localised stress and providing greater control during lifting operations.

Are Multi-Point Lifting Beams suitable for offshore lifting?

Yes. Multi-Point and Multi-Lug Beams are commonly used in offshore, marine, renewable energy and heavy engineering lifting applications where controlled load distribution and multiple pick points are required.

Can Multisec provide bespoke Multi-Point Lifting Beams?

Yes. Multisec can provide bespoke lifting beam solutions where standard configurations are not suitable, including custom capacities, spans, lifting point arrangements and project-specific requirements.

How do I select the correct Multi-Point Lifting Beam?

Beam selection depends on load weight, span, lifting configuration, pick point locations, headroom and rigging requirements. The Multisec engineering team can review your lifting requirements and recommend the most suitable solution.

MP-100 Multi-Point Lifting Beam | Up to 100t

Heavy-lift model overview

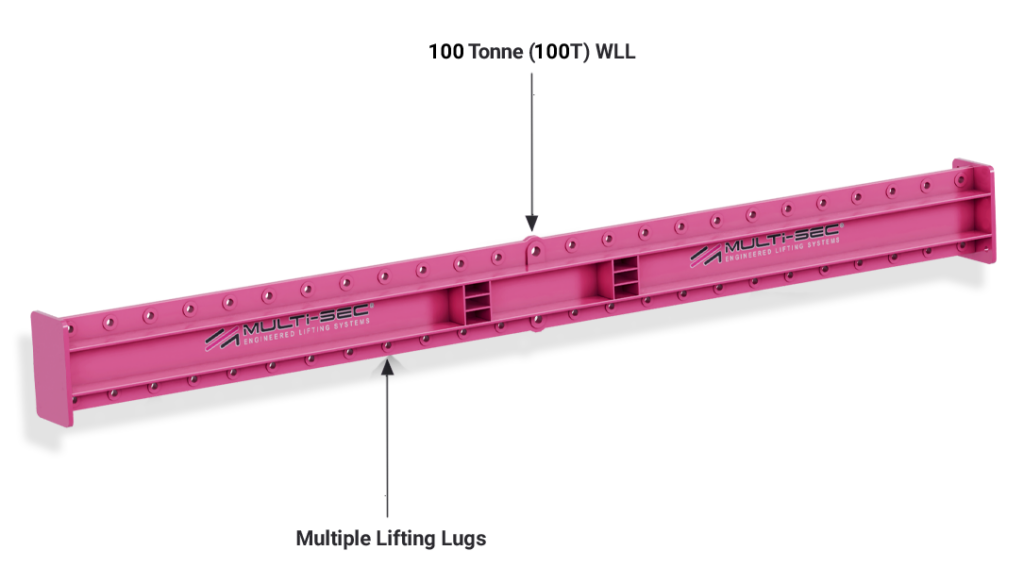

What is the MP-100?

The MP-100 is a higher-capacity Multi-Point Lifting Beam available in 6m and 11.5m beam options. It supports Centre Point, Spreader and Semi-Spreader lifting arrangements, with allowable capacity determined by the selected beam option, span and configuration.

Multi-Point Lifting Beam Range

Choose the right Multi-Point Beam

MP-13 13 tonnes Up to 12m (3m + 6m + 3m) MP-25 25 tonnes Up to 12m (3m + 6m + 3m) MP-34 34 tonnes Up to 12m (3m + 6m + 3m) MP-50 50 tonnes Up to 12m (3m + 6m + 3m) MP-100 Up to 100 tonnes 11.5m beam option MP-300 300 tonnes 10m beam

Heavy-lift beam options

Choose the MP-100 beam option

The MP-100 is available in two beam options. Select the beam length first, then use the applicable load chart to confirm the allowable capacity for the required lifting arrangement.

6m

6m Beam Option

Up to 100 tonnes WLL

The supplied 6m load chart lists 100 tonnes Working Load Limit across the displayed bottom spans.

View applicable load chart ↓

11.5m

11.5m Beam Option

Centre / Spreader / Semi-Spreader

The 11.5m beam supports the three lifting arrangements, with allowable capacity dependent on the selected span and configuration.

View applicable load chart ↓

The 11.5m Centre Point and Semi-Spreader arrangements reduce in allowable capacity at some longer spans. Use the load charts below for final selection.

Select the lifting configuration

One system. Three lifting arrangements.

Centre Point Lift

The MP-100 can be used in Centre Point configuration where a single upper lifting point suits the lift. The 11.5m Centre Point load chart shows allowable capacity reducing as the selected bottom span increases.

6m beam option available
11.5m Centre Point option available
Check the applicable load chart for the required span

Use the model-specific load chart to confirm the allowable Working Load Limit for the selected Centre Point arrangement.

Spreader Beam Configuration

The MP-100 can be rigged as a spreader beam using the designated upper lifting points. The supplied 11.5m spreader chart provides up to 100 tonnes across the displayed matched-span configurations.

Controlled two-point lifting
11.5m heavy-lift beam option
Matched top and bottom spans

For spreader configurations, header slings must not exceed 30° STV.

Semi-Spreader Configuration

The Semi-Spreader arrangement provides greater flexibility where the top and bottom lifting geometry differs. Allowable capacity varies with the selected span.

Flexible lifting geometry
Multiple lower lifting points
Capacity varies with selected span

Use the MP-100 Semi-Spreader load chart to confirm the allowable capacity. Header slings must not exceed 30° STV.

Capacity & configuration

MP-100 capacity & configuration

Use the model-specific load charts below to confirm the allowable capacity for the selected heavy-lift beam option, span and lifting arrangement.

✓

Up to 100 tonne Working Load Limit. 6m beam weight: 4,500 kg. 11.5m beam weight: 8,150 kg. Top Central: 125t Wide Body Shackle. Top Outer: 85t Bow Shackle. Bottom Central: 125t Wide Body Shackle. Bottom Outer: 55t Bow Shackle. The 6m beam provides 100t WLL across the documented bottom lifting centres from 1m to 6m. The 11.5m Centre Point arrangement reduces in capacity as bottom span increases. The 11.5m Spreader arrangement provides 100t WLL across the documented matched top and bottom spans. The 11.5m Semi-Spreader capacity reduces as bottom span increases. For the 11.5m Spreader and Semi-Spreader configurations, header slings must not exceed 30° STV.

Technical downloads

Technical data & load information

Download the current model-specific technical data sheet for capacity, span and configuration information.

Select a configuration to view the applicable load data.

Swipe horizontally to view the full load chart →

Bottom span (m)	1	2	3	4	5	6
WLL (tonnes)	100	100	100	100	100	100

Swipe horizontally to view the full load chart →

Bottom span (m)	1.5	2.5	3.5	4.5	5.5	6.5	7.5	8.5	9.5	10.5	11.5
WLL (tonnes)	100	100	100	100	100	100	75	65	57	52	45

Swipe horizontally to view the full load chart →

Top span (m)	1.5	2.5	3.5	4.5	5.5	6.5	7.5	8.5	9.5	10.5	11.5
Bottom span	1.5	2.5	3.5	4.5	5.5	6.5	7.5	8.5	9.5	10.5	11.5
WLL (tonnes)	100	100	100	100	100	100	100	100	100	100	100

For the 11.5m Spreader and Semi-Spreader configurations, header sling angles must not exceed 30° STV.

Swipe horizontally to view the full load chart →

Top span (m)	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5
Bottom span	1.5	2.5	3.5	4.5	5.5	6.5	7.5	8.5	9.5	10.5	11.5
WLL (tonnes)	100	100	100	100	100	95	80	65	60	55	45

For the 11.5m Spreader and Semi-Spreader configurations, header sling angles must not exceed 30° STV.

Not sure which configuration you need? Speak to our technical team →

Engineered for complex lifting operations

Typical applications

Heavy structural steel lifting and installation
Large fabricated assemblies and modules
Industrial plant and equipment installation
Offshore and energy sector lifting operations
Heavy engineering projects requiring multiple lifting points

Request a quote

Discuss your MP-100 requirement

Discuss your MP-100 lifting requirement with the Multisec team to confirm beam option, configuration and allowable capacity.

Speak directly to our team+44 (0)1642 240 672

Project quotation request forMP-100 Multi-Point Lifting Beam

Contact detailsYour details

Name Email Company Telephone

Lift requirementSpecify the liftGive us what you know. Leave anything you are unsure about blank and our engineering team can advise.

Load weight / required WLL (tonnes, if known) Required span / pick point centres (m) Number of load lifting points Configuration Project / lift type Required by Drawing or lift plan Optional. PDF, JPG, PNG or WebP, maximum 10 MB. Project files are stored privately for seven days.

Project informationAnything else we should know?Add dimensions, headroom, centre of gravity, site constraints or certification requirements if relevant.

Additional project details (optional)

Technical support

MP-100 FAQs

What is the maximum working load of the MP-100?

The MP-100 is rated to Up to 100 tonnes maximum Working Load Limit. Allowable capacity may reduce depending on the selected span and lifting configuration.

What lifting configurations can be used?

Centre Point Lift, Spreader Beam Configuration, Semi-Spreader Beam Configuration.

What span or size is available?

The MP-100 is available up to 11.5m beam option. Allowable capacity depends on the selected span and lifting configuration.

What beam lengths are available for the MP-100?

The MP-100 is available in 6m and 11.5m beam options. Select the beam option first, then use the applicable load chart to confirm the allowable capacity for the required lifting arrangement.

Does the MP-100 provide 100 tonnes at every span?

The supplied 6m load chart lists 100 tonnes across the displayed spans. On the 11.5m beam, allowable capacity depends on the lifting arrangement and selected span, so the applicable load chart must be checked.

How do I select the correct configuration?

Selection depends on the load, lifting points, span, headroom and rigging arrangement. Discuss the lift with the Multisec team where you need help confirming the correct configuration.

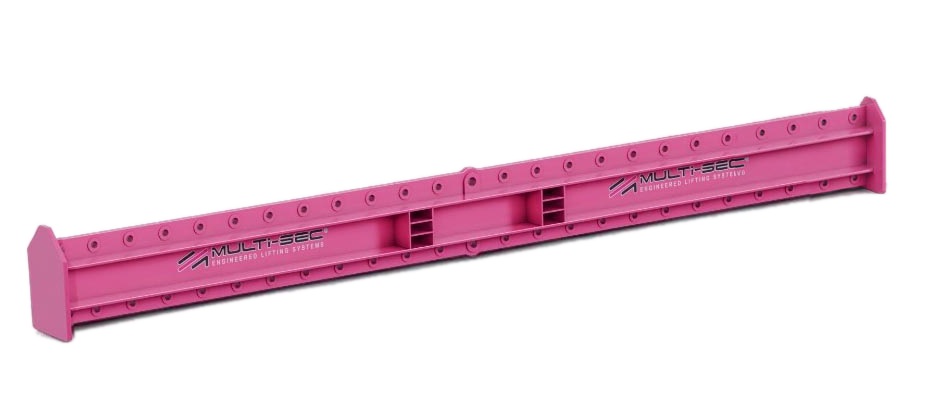

100 Tonne Multi-Point Lifting Beam
