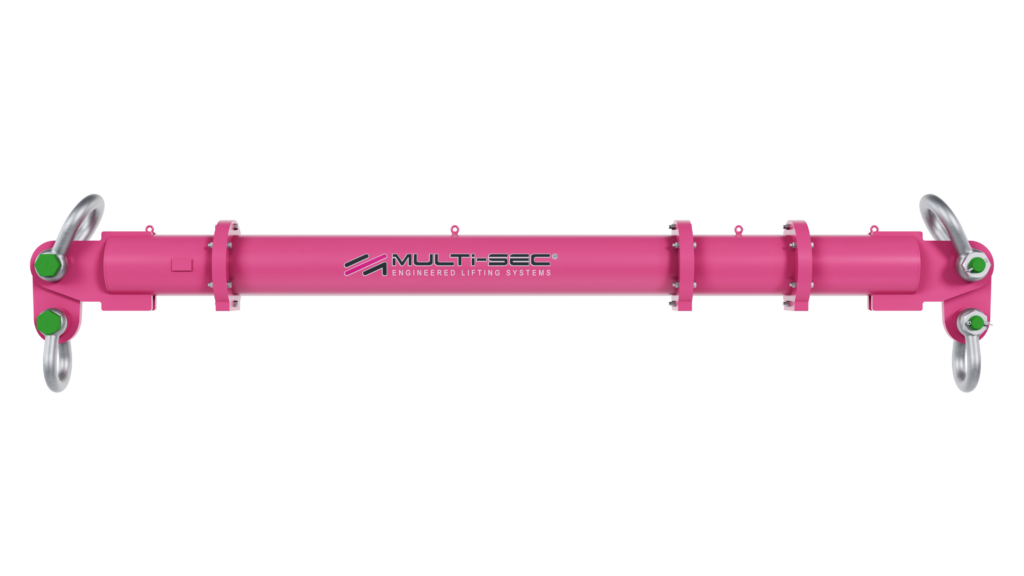

75 Tonne Modular Spreader Beam
DNV Type Approved | Multi-75 | UK Manufactured
- IN STOCK & Ready to ship worldwide
A 75 tonne spreader beam is a below-the-hook lifting device used to safely distribute loads across adjustable spans while maintaining controlled sling angles.
The Multi-75 modular spreader beam is designed for heavy lifting operations where flexibility, repeatability and certified performance are required. With spans from 1.0m to 15.0m and a maximum capacity of 75 tonnes, the system can be configured to suit a wide range of lifting applications.Multi-75 Capacity Checker
Enter your lift requirements to check whether the Multi-75 is suitable for your application.
This checker uses the nearest published span value from the Multi-75 capacity table. Always verify the final lifting arrangement against certified documentation before use.
Spreader Beam Capacities Table & Chart
View Multi-75 spreader beam capacities by span and sling angle. Full capacity data is shown below.
| Span (m) | 45° STV | 30° STV | ||
|---|---|---|---|---|
| WLL (T) | Sling Min (m) | WLL (T) | Sling Min (m) | |
| 1.00 | 75 | 0.7 | 75 | 1.0 |
| 1.50 | 75 | 1.1 | 75 | 1.5 |
| 2.00 | 75 | 1.4 | 75 | 2.0 |
| 2.50 | 75 | 1.8 | 75 | 2.5 |
| 3.00 | 75 | 2.1 | 75 | 3.0 |
| 3.50 | 75 | 2.5 | 75 | 3.5 |
| 4.00 | 75 | 2.8 | 75 | 4.0 |
| 4.50 | 75 | 3.2 | 75 | 4.5 |
| 5.00 | 75 | 3.5 | 75 | 5.0 |
| 5.50 | 75 | 3.9 | 75 | 5.5 |
| 6.00 | 75 | 4.2 | 75 | 6.0 |
| 6.50 | 75 | 4.6 | 75 | 6.5 |
| 7.00 | 75 | 4.9 | 75 | 7.0 |
| 7.50 | 75 | 5.3 | 75 | 7.5 |
| 8.00 | 75 | 5.7 | 75 | 8.0 |
| 8.50 | 75 | 6.0 | 75 | 8.5 |
| 9.00 | 75 | 6.4 | 75 | 9.0 |
| 9.50 | 71 | 6.7 | 75 | 9.5 |
| 10.00 | 65 | 7.1 | 75 | 10.0 |
| 10.50 | 59 | 7.4 | 75 | 10.5 |
| 11.00 | 54 | 7.8 | 75 | 11.0 |
| 11.50 | 49 | 8.1 | 75 | 11.5 |
| 12.00 | 44 | 8.5 | 75 | 12.0 |
| 12.50 | 40 | 8.8 | 72 | 12.5 |
| 13.00 | 36 | 9.2 | 65 | 13.0 |
| 13.50 | 32 | 9.5 | 59 | 13.5 |
| 14.00 | 30 | 9.9 | 53 | 14.0 |
| 14.50 | 27 | 10.3 | 50 | 14.5 |
| 15.00 | 25 | 10.6 | 48 | 15.0 |
Always verify final configuration against certified documentation before lifting.
Need the full capacity data for your lift?
Plan your lift with confidence. Download the complete capacity chart including all span configurations, sling lengths and certified working load limits.
Beam Diagram & Components
Hover over a component name to view its function.
STV (Sling to Vertical Angle)
The angle between the sling and vertical. This affects the working load limit and must be considered before lifting.
Typical Rigging Setup
Key rigging components for a standard Multi-75 spreader beam configuration.
- Top slings (2-leg): sized to suit working load and sling angle
- Master link / crane hook connection: matched to lifting arrangement
- Top shackle: 55 tonne standard bow shackle
- Bottom shackles: 42.5 tonne standard bow shackles
- Drop links: integrated into the beam for load connection
All rigging components must be correctly rated for the lift and used in accordance with the lift plan and certified documentation.
Not sure which rigging setup you need?
View our shackle & rigging selection guide →Get a Quote for the Multi-75
Ready to buy a Modular Spreader Beam for your next project? Call our sales team on +44 (0)1642 240 672 or fill in the form below for a quote and expert advice on the best lifting solution for your needs. With our extensive range of modular spreader beams and lifting equipment, we ensure your project is completed safely, efficiently, and on time.
Where the Multi-75 Performs Best
Designed for higher-capacity lifting operations where control, repeatability and flexibility are critical.
Large Structural Lifts
Ideal for lifting fabricated steel structures, modules and assemblies where balanced load distribution is required across wider spans.
Offshore & Heavy Industry
Suitable for demanding environments where certified lifting equipment and predictable performance are essential.
Repeat Lifting Operations
Modular configuration allows the same beam to be adapted across multiple lifts, reducing the need for additional equipment.
Longer Span Lifts
With spans up to 15 metres, the Multi-75 enables controlled lifting of wider loads without excessive sling angles.
Reduces equipment requirements across multiple lift scenarios
Maintains controlled load distribution across varying spans
Supports safer lifting through defined sling angle limits
Multi-75 Spreader Beam FAQs
Answers to common questions about capacity, configuration, rigging and safe use.
What is the maximum capacity of the Multi-75 spreader beam?
The Multi-75 has a maximum vertical working load of 75 tonnes. Capacity varies depending on span and sling angle, so the final configuration should always be checked against certified load data or discussed with our engineering team.
What span range does the Multi-75 cover?
The Multi-75 can be configured from 1.0 metre up to 15.0 metres using modular strut sections. You can also compare models in the full modular spreader beam range.
How does sling angle affect lifting capacity?
Sling angle has a direct impact on working load limit. As the sling angle increases away from vertical, effective capacity reduces due to increased forces within the system. For more context, see our spreader beam guide.
What rigging is required for the Multi-75?
A typical setup includes a two-leg top sling arrangement, a master link or crane hook connection, a suitably rated top shackle and bottom shackles connected via drop links. You can view compatible lifting shackles here.
What are the sling angle limits for safe operation?
The top sling must not exceed 45 degrees sling-to-vertical (STV), while lower slings must remain within 6 degrees from vertical. These limits are critical to maintaining the rated capacity.
Can loads be lifted from the beam struts?
No. The Multi-75 must only be loaded at the designated end lifting points via the drop links. Loads must never be applied to the struts.
Is the Multi-75 suitable for offshore lifting?
Yes. The Multi-75 is part of the Multisec modular spreader beam system and is designed for demanding environments including offshore, marine and heavy industry.
What size spreader beam do I need?
The Multi-75 is one of several beams within the Multisec modular spreader beam range, which includes capacities up to 250 tonnes and spans up to 22 metres. Explore the full modular spreader beam system to see how different beams can be combined to create flexible lifting solutions.
