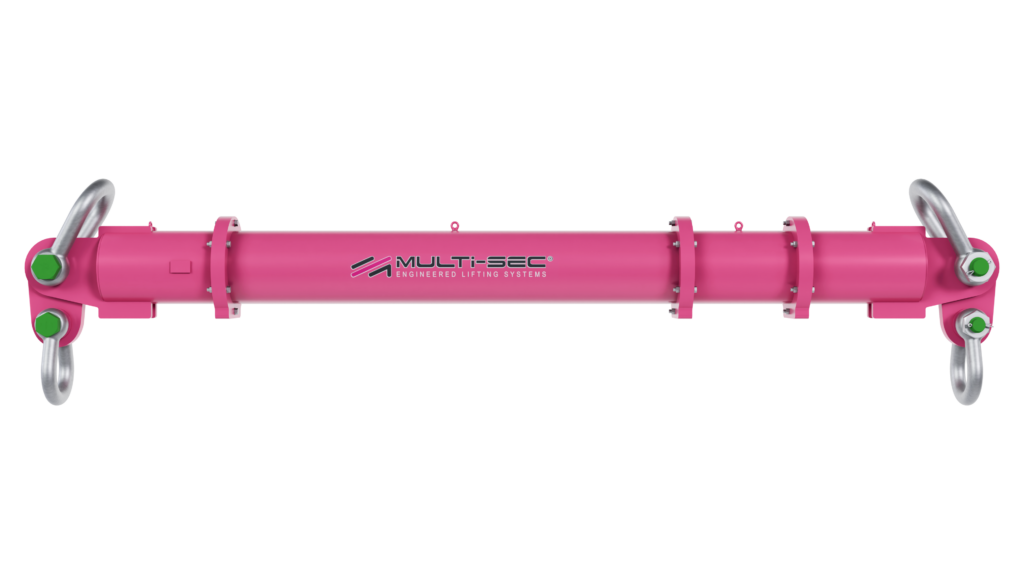

110 Tonne Modular Spreader Beam
DNV Type Approved | Multi-110 | UK Manufactured
- IN STOCK & Ready to ship worldwide
A 110 tonne spreader beam is a below-the-hook lifting device used to distribute loads across fixed lifting points while maintaining controlled sling angles.
The Multi-110 modular spreader beam is part of the Multisec modular spreader beam range, designed for high-capacity lifting operations where strength, flexibility and certified performance are critical. With a maximum working load of 110 tonnes at a 14.5 metre span, and configurable lengths up to 18.0 metres at reduced capacity, the system is suited to demanding applications including offshore structures, heavy fabrications and industrial lifting projects.
Multi-110 Capacity Checker
Enter your lift requirements to check whether the Multi-110 is suitable for your application.
This checker uses the nearest published span value from the Multi-110 capacity table. Always verify the final lifting arrangement against certified documentation before use.
Spreader Beam Capacities Table & Chart
View Multi-110 spreader beam capacities by span and sling angle. Full capacity data is shown below.
| Span (m) | 45° STV | 30° STV | ||
|---|---|---|---|---|
| WLL (T) | Sling Min (m) | WLL (T) | Sling Min (m) | |
| 1.50 | 110 | 1.1 | 110 | 1.5 |
| 2.00 | 110 | 1.4 | 110 | 2.0 |
| 2.50 | 110 | 1.8 | 110 | 2.5 |
| 3.00 | 110 | 2.1 | 110 | 3.0 |
| 3.50 | 110 | 2.5 | 110 | 3.5 |
| 4.00 | 110 | 2.8 | 110 | 4.0 |
| 4.50 | 110 | 3.2 | 110 | 4.5 |
| 5.00 | 110 | 3.5 | 110 | 5.0 |
| 5.50 | 110 | 3.9 | 110 | 5.5 |
| 6.00 | 110 | 4.2 | 110 | 6.0 |
| 6.50 | 110 | 4.6 | 110 | 6.5 |
| 7.00 | 110 | 4.9 | 110 | 7.0 |
| 7.50 | 110 | 5.3 | 110 | 7.5 |
| 8.00 | 110 | 5.7 | 110 | 8.0 |
| 8.50 | 110 | 6.0 | 110 | 8.5 |
| 9.00 | 110 | 6.4 | 110 | 9.0 |
| 9.50 | 110 | 6.7 | 110 | 9.5 |
| 10.00 | 110 | 7.1 | 110 | 10.0 |
| 10.50 | 110 | 7.4 | 110 | 10.5 |
| 11.00 | 110 | 7.8 | 110 | 11.0 |
| 11.50 | 100 | 8.1 | 110 | 11.5 |
| 12.00 | 90 | 8.5 | 110 | 12.0 |
| 12.50 | 85 | 8.8 | 110 | 12.5 |
| 13.00 | 80 | 9.2 | 110 | 13.0 |
| 13.50 | 75 | 9.5 | 110 | 13.5 |
| 14.00 | 70 | 9.9 | 110 | 14.0 |
| 14.50 | 60 | 10.3 | 110 | 14.5 |
| 15.00 | 55 | 10.6 | 100 | 15.0 |
| 15.50 | 50 | 11.0 | 95 | 15.5 |
| 16.00 | 45 | 11.3 | 87 | 16.0 |
| 16.50 | 40 | 11.7 | 85 | 16.5 |
| 17.00 | 35 | 12.0 | 80 | 17.0 |
| 17.50 | 30 | 12.4 | 73 | 17.5 |
| 17.75 | 25 | 12.6 | 70 | 17.75 |
Always verify final configuration against certified documentation before lifting.
Need the full capacity data for your lift?
Plan your lift with confidence. Download the complete capacity chart including all span configurations, sling lengths and certified working load limits.
Beam Diagram & Components
Hover over a component name to view its function.
STV (Sling to Vertical Angle)
The angle between the sling and vertical. This affects the working load limit and must be considered before lifting.
Typical Rigging Setup
Key rigging components for a standard Multi-110 spreader beam configuration.
- Top slings (2-leg): sized to suit working load and sling angle
- Master link / crane hook connection: matched to lifting arrangement
- Top shackle: 85 tonne standard bow shackle
- Bottom shackles: 55 tonne standard bow shackles
- Drop links: integrated into the beam for load connection
All rigging components must be correctly rated for the lift and used in accordance with the lift plan and certified documentation.
Not sure which rigging setup you need?
View our shackle & rigging selection guide →Get a Quote for the Multi-110
Ready to specify a 110 tonne spreader beam for your next lift?
Our engineering team can support you with the correct configuration based on your required span, load and lifting arrangement. The Multi-110 modular spreader beam is designed to be adaptable, allowing a single system to cover multiple lifting scenarios with certified performance.
If you already know your requirements, submit the details below for a fast quotation. If not, we can help you define the correct setup using the capacity table or capacity checker above.
All enquiries are reviewed by experienced lifting engineers to ensure your solution is safe, compliant and fit for purpose.
Why Choose the Multi-110?
Built for high-capacity lifting operations where span, strength and certified performance matter.
Built for High-Capacity Heavy Lifts
The Multi-110 is designed for demanding lifting applications where a standard beam may not provide the required capacity or span. As part of the Multisec modular spreader beam range, it offers a configurable solution for heavier lifts across offshore, marine and industrial projects.
110 Tonne Capacity
Designed for heavier lifting requirements where controlled load distribution is essential.
Long-Span Flexibility
Configurable up to 18.0m at reduced capacity, supporting wider loads and complex lifting arrangements.
Controlled Rigging Geometry
Published capacity data helps engineers select the correct span and sling angle for the lift.
Engineer-Led Support
Not sure on configuration? Use the capacity table or speak to our team.
Multi-110 Spreader Beam FAQs
Answers to common questions about capacity, span, rigging and safe use.
What is the maximum capacity of the Multi-110 spreader beam?
The Multi-110 has a maximum vertical working load of 110 tonnes. Capacity varies depending on span and sling angle, so the final configuration should always be checked against certified load data or discussed with our engineering team.
What span range does the Multi-110 cover?
The Multi-110 can be configured from 1.5 metres up to 18.0 metres using modular strut sections. You can compare other models in the full modular spreader beam range.
What is the maximum span at full 110 tonne capacity?
The Multi-110 is rated to 110 tonnes at a maximum standard span of 14.5 metres. Longer spans are available at reduced working load limits, depending on sling angle and configuration.
How does sling angle affect lifting capacity?
Sling angle has a direct impact on working load limit. As the sling angle increases away from vertical, the effective capacity reduces due to increased forces within the system. For more background, see our spreader beam guide.
What rigging is required for the Multi-110?
A typical setup includes a two-leg top sling arrangement, a master link or crane hook connection, a suitably rated top shackle and bottom shackles connected via drop links. You can view compatible lifting shackles here.
What are the sling angle limits for safe operation?
The top sling must not exceed 45 degrees sling-to-vertical, while lower slings must remain within 6 degrees from vertical. These limits are critical to maintaining the rated capacity shown in the capacity table.
Can loads be lifted from the beam struts?
No. The Multi-110 must only be loaded at the designated end lifting points through the drop links. Loads must never be applied to the struts.
Is the Multi-110 suitable for offshore lifting?
Yes. The Multi-110 is part of the Multisec modular spreader beam system and is suited to offshore, marine and heavy industrial lifting applications where certified equipment is required.
Explore the Modular Spreader Beam Range
The Multi-110 is one of several beams within the Multisec modular spreader beam range, which includes capacities up to 250 tonnes and spans up to 22 metres. Explore the full modular spreader beam system to see how different beams can be combined to create flexible lifting solutions.
