25 Tonne Modular Spreader Beam

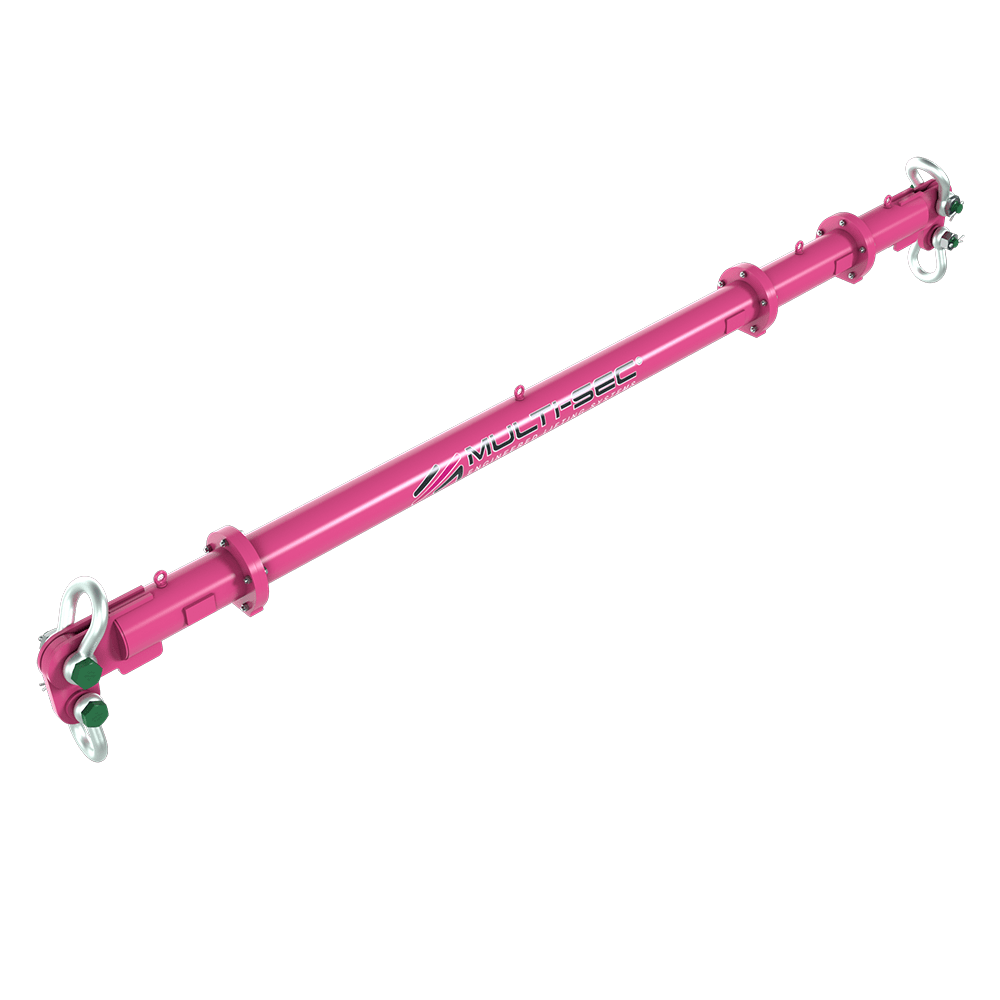

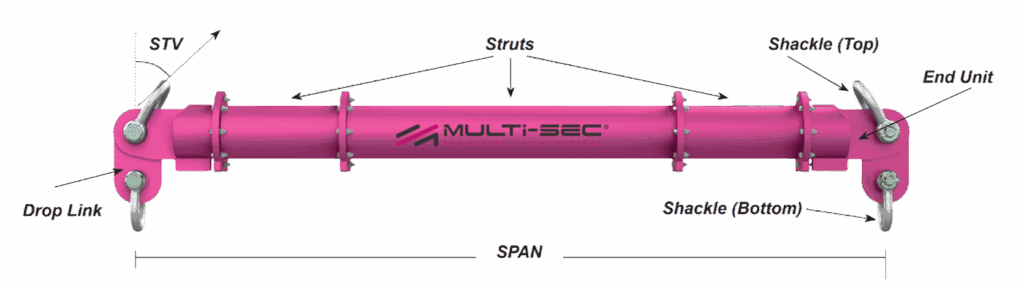

The Multi-25 modular spreader beam provides 25 tonnes up to 5.5m at 45° STV or 7.25m at 30° STV. Matching interchangeable struts allow configurations from 1m to 9.25m, with reduced ratings at longer spans.
Multi-25 Capacity Checker
Enter the load, required span and top sling angle and we’ll check the most suitable standard Multisec beam for your lift.
Use the checker as a beam-selection guide. Our team can confirm the final beam configuration, rigging arrangement and lifting geometry for your application.
Multi-25 Capacity Table
View 25 tonne modular spreader beam capacities by span and sling angle. Working Load Limits vary depending on span and top sling angle.
| Span (m) | 45° STV | 30° STV | ||
|---|---|---|---|---|
| WLL (T) | Min. Effective Rigging (m) | WLL (T) | Min. Effective Rigging (m) | |
| 1.00 | 25 | 0.8 | 25 | 1 |
| 1.50 | 25 | 1.1 | 25 | 1.5 |
| 2.00 | 25 | 1.5 | 25 | 2 |
| 2.50 | 25 | 1.8 | 25 | 2.5 |
| 3.00 | 25 | 2.2 | 25 | 3 |
| 3.50 | 25 | 2.5 | 25 | 3.5 |
| 4.00 | 25 | 2.9 | 25 | 4 |
| 4.50 | 25 | 3.2 | 25 | 4.5 |
| 5.00 | 25 | 3.6 | 25 | 5 |
| 5.50 | 25 | 3.9 | 25 | 5.5 |
| 6.00 | 23 | 4.3 | 25 | 6 |
| 6.25 | 21 | 4.5 | 25 | 6.25 |
| 6.50 | 19.5 | 4.6 | 25 | 6.5 |
| 6.75 | 18 | 4.8 | 25 | 6.75 |
| 7.00 | 16.5 | 5 | 25 | 7 |
| 7.25 | 15 | 5.2 | 25 | 7.25 |
| 7.50 | 14 | 5.4 | 24 | 7.5 |
| 7.75 | 13 | 5.5 | 22.5 | 7.75 |
| 8.00 | 12 | 5.7 | 21 | 8 |
| 8.25 | 11 | 5.9 | 19 | 8.25 |
| 8.50 | 10 | 6.1 | 18.5 | 8.5 |
| 8.75 | 9 | 6.2 | 17.5 | 8.75 |
| 9.00 | 8 | 6.4 | 16 | 9 |
| 9.25 | 7 | 6.6 | 15 | 9.25 |
| Span | WLL | Min. Effective Rigging |
|---|---|---|
| 1.00m | 25t | 0.8m |
| 1.50m | 25t | 1.1m |
| 2.00m | 25t | 1.5m |
| 2.50m | 25t | 1.8m |
| 3.00m | 25t | 2.2m |
| 3.50m | 25t | 2.5m |
| 4.00m | 25t | 2.9m |
| 4.50m | 25t | 3.2m |
| 5.00m | 25t | 3.6m |
| 5.50m | 25t | 3.9m |
| 6.00m | 23t | 4.3m |
| 6.25m | 21t | 4.5m |
| 6.50m | 19.5t | 4.6m |
| 6.75m | 18t | 4.8m |
| 7.00m | 16.5t | 5m |
| 7.25m | 15t | 5.2m |
| 7.50m | 14t | 5.4m |
| 7.75m | 13t | 5.5m |
| 8.00m | 12t | 5.7m |
| 8.25m | 11t | 5.9m |
| 8.50m | 10t | 6.1m |
| 8.75m | 9t | 6.2m |
| 9.00m | 8t | 6.4m |
| 9.25m | 7t | 6.6m |
| Span | WLL | Min. Effective Rigging |
|---|---|---|
| 1.00m | 25t | 1m |
| 1.50m | 25t | 1.5m |
| 2.00m | 25t | 2m |
| 2.50m | 25t | 2.5m |
| 3.00m | 25t | 3m |
| 3.50m | 25t | 3.5m |
| 4.00m | 25t | 4m |
| 4.50m | 25t | 4.5m |
| 5.00m | 25t | 5m |
| 5.50m | 25t | 5.5m |
| 6.00m | 25t | 6m |
| 6.25m | 25t | 6.25m |
| 6.50m | 25t | 6.5m |
| 6.75m | 25t | 6.75m |
| 7.00m | 25t | 7m |
| 7.25m | 25t | 7.25m |
| 7.50m | 24t | 7.5m |
| 7.75m | 22.5t | 7.75m |
| 8.00m | 21t | 8m |
| 8.25m | 19t | 8.25m |
| 8.50m | 18.5t | 8.5m |
| 8.75m | 17.5t | 8.75m |
| 9.00m | 16t | 9m |
| 9.25m | 15t | 9.25m |
Do not interpolate between ratings. Confirm the final beam configuration and rigging arrangement before lifting.
Request a Multi-25 Quote
Tell us the load, required span and sling arrangement and the Multisec team will help you confirm the correct Multi-25 configuration for your lift.
Engineering Support Included
- Assistance selecting the correct beam for the required lifting span.
- Advice on top sling angle, minimum effective top rigging length and Working Load Limit.
- Guidance on suitable rigging and lifting geometry.
- Project-specific configuration support where required.
Multi-25 Technical FAQs
Technical answers covering capacity, configuration, certification and typical use for the 25 tonne modular spreader beam.
What is the maximum capacity of the Multi-25 modular spreader beam?
The Multi-25 has a maximum Working Load Limit of 25 tonnes, available up to 5.5m at 45° STV and up to 7.25m at 30° STV. As the beam is configured to longer spans, the available capacity can reduce, so the load, span and top sling angle should always be considered together when selecting the final arrangement.
For a quick initial check, use the capacity checker above. If the lift is unusual or the required geometry is not shown, the Multisec team can confirm the most suitable beam and rigging arrangement.
What spans are available for the Multi-25?
The Multi-25 covers standard span options across 1.00m to 9.25m. Because it is modular, the beam can be reconfigured for different lifting centres instead of being tied to one fixed length.
The capacity table shows how Working Load Limit and minimum effective top rigging length change through the span range. This makes it easier to choose a configuration that suits both the load and the available lifting geometry.
Does the Multi-25 maintain full capacity at every span?
No. The maximum 25 tonnes Working Load Limit is available only within the shorter standard configurations shown in the capacity table. As the span increases, the allowable capacity can reduce depending on the top sling angle.
This is normal for modular spreader beam systems and is why the span and sling angle should be checked together rather than selecting a beam by capacity alone.
How does top sling angle affect the Multi-25?
The top sling angle has a direct effect on the force carried through the lifting system. The Multi-25 page shows separate capacity data for 45° STV and 30° STV arrangements, together with the minimum effective top rigging length required at each span.
A smaller sling angle to the vertical requires a greater effective rigging length for the same span. The selected arrangement should therefore be based on the available headroom, required span and load weight, not just the beam capacity.
What is the maximum top sling angle?
The maximum top sling angle for the standard Multi-25 arrangement is 45° from vertical (45° STV). The 45° and 30° options shown in the capacity table allow the lifting team to compare capacity and minimum effective top rigging length for two common rigging geometries.
If the planned lift requires a different top sling geometry, speak to Multisec before selecting the beam so the complete lifting arrangement can be reviewed.
What is the maximum lower sling angle?
The standard lower sling arrangement should remain within 6° from vertical. Keeping the lower slings close to vertical helps the beam distribute the load through the intended end lifting points.
If the lower pick points create a larger angle or an unusual load path, send the load dimensions and lifting-point positions to the Multisec team so the arrangement can be checked before the beam is specified.
What is the Multi-25 typically used for?
The Multi-25 is intended for controlled two-point lifting where the load needs to be supported over a defined span. Typical applications include structural steel, fabricated assemblies, plant and machinery, modular equipment, industrial components and project cargo.
Its modular construction is particularly useful where one lifting system needs to cover several different lifting centres across multiple projects or repeated lifts.
Why choose a modular spreader beam instead of a fixed-length beam?
A fixed-length spreader beam is designed around one set lifting centre. A modular spreader beam can be reconfigured using interchangeable sections, allowing the same system to cover several spans and lifting requirements.
That flexibility can reduce the need to own or transport several separate fixed beams, while still giving the lifting team a defined capacity table for each standard configuration.
How do I choose the correct span and beam size?
Start with three pieces of information: the total lifted load, the required lifting span and the available top sling geometry. Use the capacity checker to see whether the Multi-25 is suitable and compare the capacity table for the selected span.
If the requirement is beyond this model, the checker can point you towards the next standard Multisec beam. For unusual loads, limited headroom or non-standard pick points, send the lift details to our team and we can help with beam selection.
How is the minimum effective top rigging length determined?
The minimum effective top rigging length changes with beam span and sling angle. The length is measured from the end-unit top pin to the bearing point on the crane hook and includes the sling, top shackle and any master link. Do not use a shorter effective rigging length.
The capacity table provides the minimum effective top rigging length alongside the Working Load Limit for each standard span, so the crane hook height and available headroom can be considered during lift planning.
Can loads be applied directly to the modular struts?
No. The standard modular spreader beam is designed to transfer the load through the designated end drop-link positions. Loads should not be suspended directly from the interchangeable strut sections.
If your lift needs additional or intermediate load points, a Multi-Point Lifting Beam or a bespoke engineered lifting solution may be more appropriate.
Is the Multi-25 DNV Type Approved?
The Multi-25 (DL-MS-25) is covered by DNV Type Approval Certificate TAS0000506 to DNV-ST-0378. The approval covers the full 25 tonnes rating up to 5.5m at 45° STV and up to 7.25m at 30° STV. The reduced ratings for longer spans are outside the certificate and are designed in accordance with BS EN 13155.
The certificate’s design temperature of -20 °C is the lowest service temperature. DNV-ST-0378 clause 1.1.7.3 covers ambient temperatures up to +45 °C; use above this is covered by Multisec’s own rating, outside the certificate.
Where is the Multi-25 manufactured?
The Multi-25 is designed and manufactured in the United Kingdom by Multisec. The modular system is intended to provide a practical, reconfigurable lifting solution for projects in the UK and international markets.
Can Multisec help select the correct spreader beam?
Yes. Send us the load weight, required span, lifting-point centres, available headroom and any relevant load dimensions. Our team can help identify the most suitable standard Multisec beam and configuration for the project.
If the standard modular spreader beam range is not the right fit, Multisec can also discuss alternative lifting arrangements or bespoke engineered solutions.
How should the struts be arranged?
At spans carrying the full rating, the struts may be assembled in any order. At longer spans with reduced ratings, position the longest strut at the centre, with shorter struts towards the end units. Use no more than six struts plus two end units.
What operating temperatures apply?
The beam temperature range is -20 °C to +200 °C. From -20 °C to +100 °C the full table ratings apply. Above +100 °C and up to +200 °C a reduced rating applies: contact Multisec for the permissible rating before lifting. If beam temperature is not measured, take it as the highest temperature to which it is exposed, including heat from a hot load beneath it. Check slings and other rigging against their manufacturers’ limits. DNV ambient-temperature coverage is limited to +45 °C.
