13 Tonne
Modular Spreader Beam

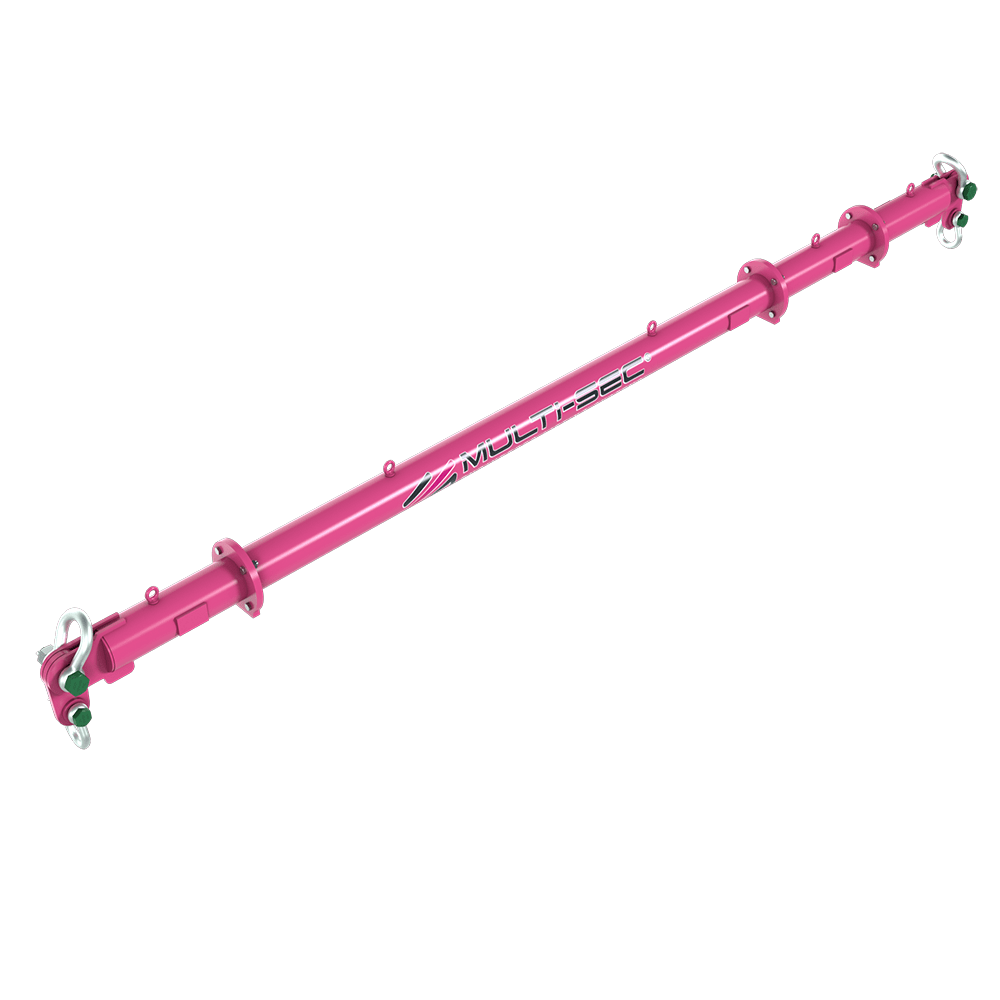

The Multi-13 is a DNV Type Approved modular spreader beam with a maximum working load limit of 13 tonnes. Designed for below-the-hook lifting applications, it provides controlled load distribution, reduced sling angles and configurable spans from 1.0m to 7.75m using interchangeable modular components.
Multi-13 Capacity Checker
Enter your load, span and top sling angle to quickly check whether the Multi-13 modular spreader beam is suitable for your lifting application.
Multi-13 Capacity Table
View Multi-13 modular spreader beam capacities by span and sling angle. Working load limits vary depending on configuration, span and top sling angle.
| Span (m) | 45° STV | 30° STV | ||
|---|---|---|---|---|
| WLL (T) | Sling Min (m) | WLL (T) | Sling Min (m) | |
| 1.00 | 13 | 0.7 | 13 | 1.0 |
| 1.50 | 13 | 1.1 | 13 | 1.5 |
| 2.00 | 13 | 1.4 | 13 | 2.0 |
| 2.50 | 13 | 1.8 | 13 | 2.5 |
| 3.00 | 13 | 2.1 | 13 | 3.0 |
| 3.50 | 13 | 2.5 | 13 | 3.5 |
| 4.00 | 13 | 2.8 | 13 | 4.0 |
| 4.50 | 12.5 | 3.2 | 13 | 4.5 |
| 5.00 | 11.5 | 3.5 | 13 | 5.0 |
| 5.25 | 10.5 | 3.7 | 13 | 5.25 |
| 5.50 | 9.5 | 3.9 | 13 | 5.5 |
| 5.75 | 8.75 | 4.1 | 13 | 5.75 |
| 6.00 | 8 | 4.2 | 12.5 | 6.0 |
| 6.25 | 7.5 | 4.5 | 11.5 | 6.25 |
| 6.50 | 7 | 4.6 | 10.5 | 6.5 |
| 6.75 | 6 | 4.8 | 10 | 6.75 |
| 7.00 | 6.5 | 5.0 | 9.5 | 7.0 |
| 7.25 | 5.5 | 5.1 | 9 | 7.25 |
| 7.50 | 5 | 5.3 | 8.5 | 7.5 |
| 7.75 | 4.5 | 5.5 | 8 | 7.75 |
Always verify final configuration against certified documentation before lifting.
Multi-13 Capacity Chart
Download a printable copy of the Multi-13 capacity chart for planning, quoting and site reference.
Multi-13 Capacity Table
View Multi-13 modular spreader beam capacities by span and sling angle. Working load limits vary depending on configuration, span and top sling angle.
| Span (m) | 45° STV | 30° STV | ||
|---|---|---|---|---|
| WLL (T) | Sling Min (m) | WLL (T) | Sling Min (m) | |
| 1.00 | 13 | 0.7 | 13 | 1.0 |
| 1.50 | 13 | 1.1 | 13 | 1.5 |
| 2.00 | 13 | 1.4 | 13 | 2.0 |
| 2.50 | 13 | 1.8 | 13 | 2.5 |
| 3.00 | 13 | 2.1 | 13 | 3.0 |
| 3.50 | 13 | 2.5 | 13 | 3.5 |
| 4.00 | 13 | 2.8 | 13 | 4.0 |
| 4.50 | 12.5 | 3.2 | 13 | 4.5 |
| 5.00 | 11.5 | 3.5 | 13 | 5.0 |
| 5.25 | 10.5 | 3.7 | 13 | 5.25 |
| 5.50 | 9.5 | 3.9 | 13 | 5.5 |
| 5.75 | 8.75 | 4.1 | 13 | 5.75 |
| 6.00 | 8 | 4.2 | 12.5 | 6.0 |
| 6.25 | 7.5 | 4.5 | 11.5 | 6.25 |
| 6.50 | 7 | 4.6 | 10.5 | 6.5 |
| 6.75 | 6 | 4.8 | 10 | 6.75 |
| 7.00 | 6.5 | 5.0 | 9.5 | 7.0 |
| 7.25 | 5.5 | 5.1 | 9 | 7.25 |
| 7.50 | 5 | 5.3 | 8.5 | 7.5 |
| 7.75 | 4.5 | 5.5 | 8 | 7.75 |
Always verify final configuration against certified documentation before lifting.
Multi-13 Capacity Chart
Download a printable copy of the Multi-13 capacity chart for planning, quoting and site reference.
Request a Multi-13 Quote
Ready to specify the Multisec 13 Tonne Modular Spreader Beam (Multi-13) for your next lifting project? Our engineering team can help confirm the correct beam configuration, span, rigging arrangement and lifting geometry before preparing a competitive quotation.
Engineering Support Included
- Assistance selecting the correct Multi-13 configuration for your required lifting span.
- Advice on top sling angles, lifting centres and certified Working Load Limits.
- Guidance on compatible shackles, rigging equipment and lifting accessories.
- Support with certified load charts, technical documentation and project requirements.
- Fast quotations from experienced lifting engineers with worldwide delivery available.
Multi-13 Technical FAQs
Technical answers covering capacity, configuration, certification, rigging and typical applications for the Multisec 13 tonne modular spreader beam.
What is the maximum capacity of the Multisec 13 tonne modular spreader beam?
The Multisec 13 tonne modular spreader beam, also known as the Multi-13, has a maximum Working Load Limit of 13 tonnes. Capacity varies depending on span and top sling angle, so the final configuration should always be checked against certified load data.
What spans are available for the Multi-13 spreader beam?
The Multi-13 can be configured from 1.0 metres up to 7.75 metres using interchangeable modular strut sections. This allows one 13 tonne spreader beam to suit multiple lifting spans.
How does sling angle affect a 13 tonne spreader beam?
The Working Load Limit changes as the top sling angle increases. Lower sling angles generally provide higher lifting capacities, while larger sling angles reduce the available capacity. All lifts should be planned using the certified load chart for the selected configuration.
What is a Multisec 13 tonne modular spreader beam typically used for?
The Multi-13 is commonly used for lifting fabricated steelwork, plant and machinery, process equipment, structural assemblies, modular components and other loads where an adjustable lifting span and controlled load distribution are required.
Why choose a modular spreader beam instead of a fixed spreader beam?
A modular spreader beam provides greater flexibility than a fixed-length beam. By changing the modular strut arrangement, a single Multi-13 can achieve multiple certified spans, reducing the need for several individual lifting beams.
What rigging is typically used with the Multi-13 modular spreader beam?
A typical lifting arrangement uses a two-leg top sling assembly, a master link or crane hook connection, a 9.5 tonne standard bow shackle at the top connection and 6.5 tonne standard bow shackles at the lower drop links. Final rigging selection must always be verified against the lift plan and certified documentation.
Is the Multisec 13 tonne modular spreader beam DNV Type Approved?
Yes. The Multi-13 forms part of the Multisec Modular Spreader Beam range, which holds DNV Type Approval to DNV-ST-0378. This independent certification confirms that the system has been assessed for demanding lifting applications.
Where is the Multi-13 spreader beam manufactured?
The Multi-13 is designed and manufactured in the United Kingdom by Multisec using fully traceable materials and controlled manufacturing processes. Each beam is supplied with certification, operating instructions and supporting technical documentation.
Can Multisec help select the correct 13 tonne spreader beam?
Yes. Our engineering team can assist with beam configuration, span selection, rigging guidance and product selection. If the Multi-13 is not suitable for your lift, we can recommend a larger modular spreader beam or develop a bespoke engineered lifting solution.
