Multi-250 Modular Spreader Beams
250 Tonne WLL Modular Spreader Beam
- IN STOCK & Ready to ship worldwide

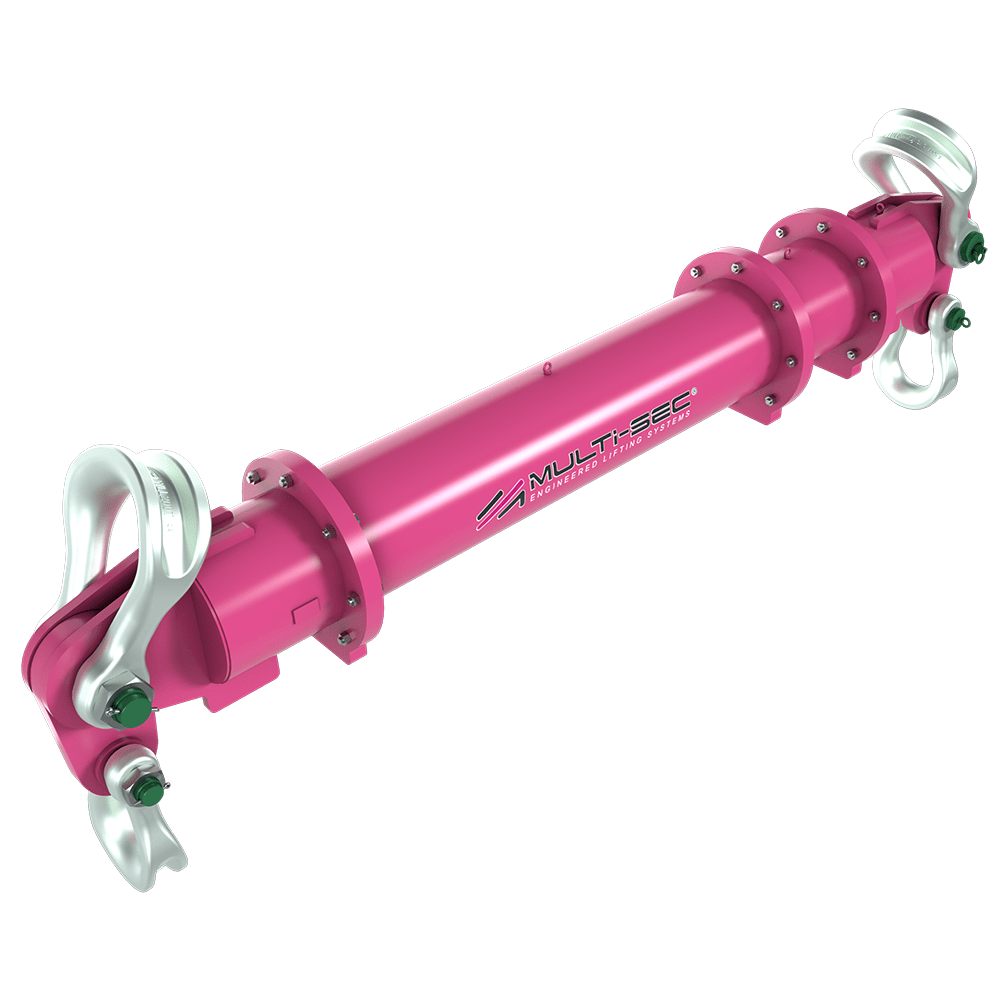

The Multisec Multi-250 Modular Spreader Beam is a DNV Type Approved lifting beam designed for demanding onshore and offshore lifting operations. Part of our core Modular Spreader Beam range, the Multi-250 holds DNV Type Approval to the DNV-ST-0378 standard, pre-approving it for use on DNV-classed offshore vessels and high-risk marine lifting projects worldwide.
Why Choose the Multisec Multi-250 Modular Spreader Beam?
The Multisec Multi-250 is part of our modular spreader beam range, expertly designed to meet the needs of heavy-duty lifting operations. With a working load limit (WLL) of up to 250 tonnes at spans of 15.5 meters, and the flexibility to extend to 22 meters at reduced capacity, this beam offers a versatile and robust solution for demanding lifting projects.
Key Specifications and Features
Working Load Limit: Up to 250 tonnes
Adjustable Span: The span ranges from 15.5 meters for full capacity lifts to 22 meters for lighter loads, offering flexibility across a range of applications.
DNV Type Approved: Certified to DNV-ST-0378 for offshore and marine lifting operations
Modular Spreader Beam Design: Interchangeable struts, end units, and drop links for fast configuration
Heavy-Duty Construction: Engineered for durability in demanding offshore and industrial environments
Shackles and Dual Slings: Secure connection to cranes and hoists, ensuring stable load distribution
Technical Specifications

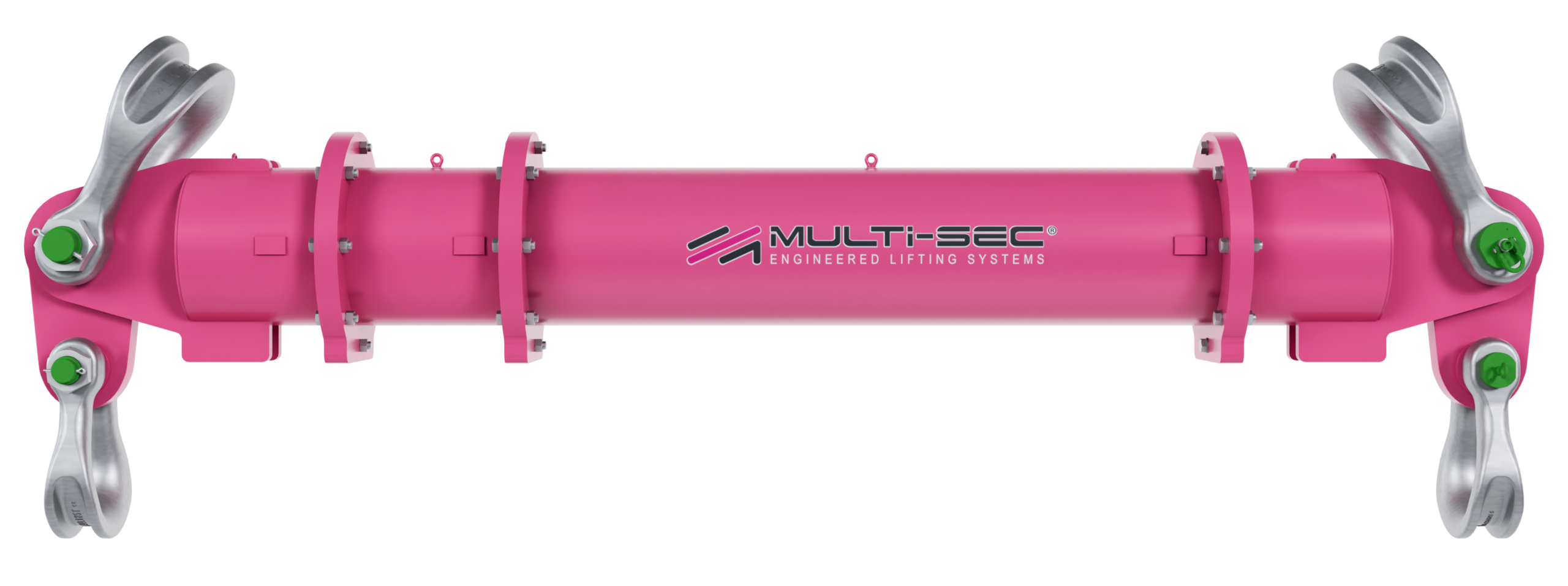

Each assembly is made up of two end units and two drop links. Comprised with interchangeable struts that can be bolted into the assembly between each end unit to shorten or lengthen the beam to suit the requirements of your specific lift
- Download the Multi-250 SpecificationsDownload the Multi-250 Specifications
Attention: Please ensure that the instructions for use have been fully read and understood before initial use of the Multi-Sec Modular Spreader Beam System. Failure to do so may result in serious injuries and/or material damage and eliminates manufacturers warranty.
What Size Shackle Do I Need?
Our selection of shackles is specifically chosen to perfectly match your spreader beam setup, ensuring optimal safety and performance.
For the Multisec Modular Multi-250 Spreader Beam, you’ll need the following:
- Sling Saver Wide Body Shackle Bow Shackle (Top): 200t
- Sling Saver Wide Body Shackle Bow Shackle (Bottom): 125t
There’s no need to look further—our compatible shackles are available for both sale and hire, allowing you to complete your lifting setup with ease and confidence.
Choose the right shackle to enhance your lifting operation and maintain the highest standards of safety and efficiency.
