Spreader Beams vs Lifting Beams

Looking for the right lifting equipment? Discover the key differences between spreader beams vs lifting beams and learn how each is designed to handle different lifting challenges. Whether you need spreader beams, lifting beams, or the flexibility of modular spreader beams

At MultiSec, we understand that lifting and rigging operations can be complex, and selecting the right equipment is crucial for both safety and efficiency. Two of the most commonly used pieces of lifting equipment are spreader beams vs lifting beams. While they may seem similar, each serves different functions and offers unique benefits. In this article, we will explore the differences between spreader beams and lifting beams, their design, applications, and when it’s best to use them. Additionally, we will highlight the advantages of our Multisec modular spreader beams, an increasingly popular choice for many industries.

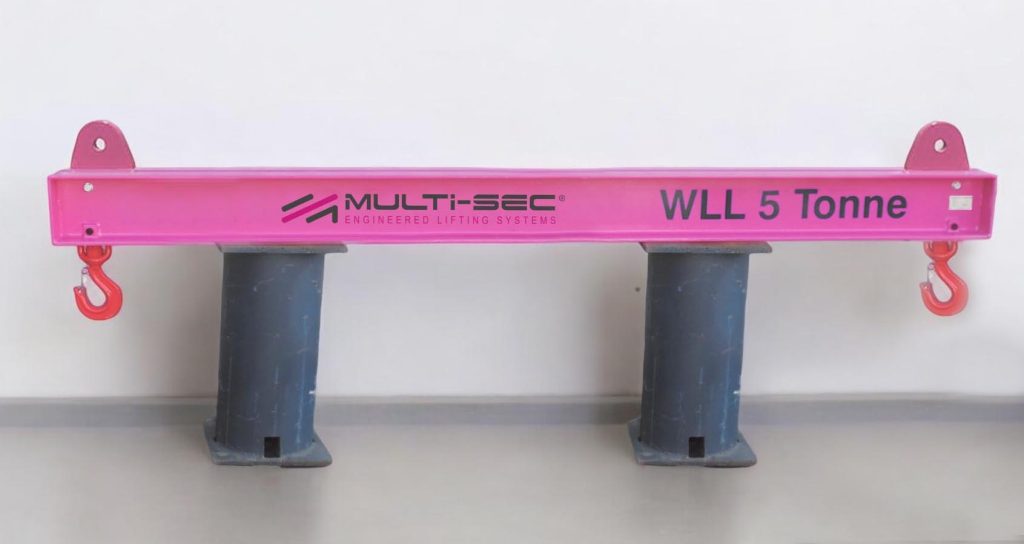

What is a Spreader Beam?

A spreader beam is a type of below-the-hook lifting device that helps to evenly distribute the weight of a load across multiple points. Unlike a lifting beam, a spreader beam operates primarily in compression. The basic configuration has two slings attached to lugs at each end of the beam, which connects to a lifting device, such as a hoist or crane.

Benefits of Spreader Beams from MultiSec:

Even Load Distribution: Ideal for long, heavy, or flexible loads that could be damaged by concentrated lifting forces.
Prevents Load Bending: Helps minimize the risk of bending or damaging long or fragile objects.
Increased Stability: Provides better control over lifting operations involving large, awkwardly shaped, or delicate loads.

Applications of a Spreader Beam:

Spreader beams are commonly used in the construction, oil and gas, marine, and shipping industries, particularly for lifting long objects such as pipes, beams, or equipment that require stability during the lift.

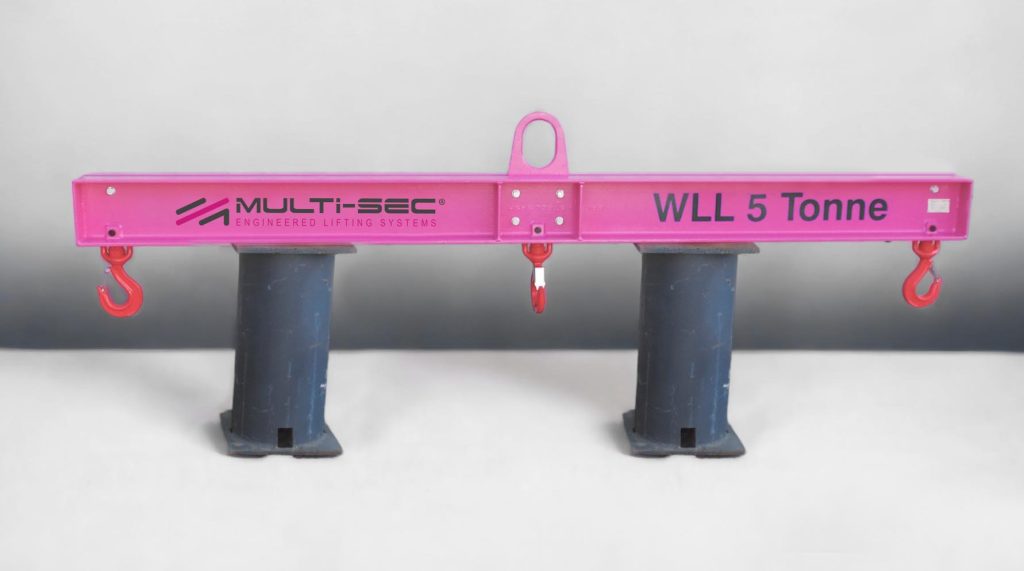

What is a Lifting Beam?

A Lifting beam, another type of below-the-hook lifting device, operates differently from a spreader beam. A lifting beam bears the load in tension, meaning the load is directly attached to the beam. It is used in environments where there may be restricted headroom or when lifting loads with multiple pick points located close together.

The basic configuration has a single attachment location, or lug, at the centre of the top side of the beam for connection to a lifting device, such as a crane or hoist.

Benefits of Lifting Beams from MultiSec:

Compact Design: Excellent for environments with limited headroom, such as manufacturing facilities or warehouses.
Multiple Pick Points: Useful for loads that require balanced lifting from several points but are in close proximity.
Simplified Rigging: Easier to rig in confined spaces or when lifting loads with symmetrical weight distribution.

Applications of a Lifting Beam:

Lifting beams are best used in industrial plants, machinery lifting, and low-headroom environments where precise lifting is required but space is at a premium.

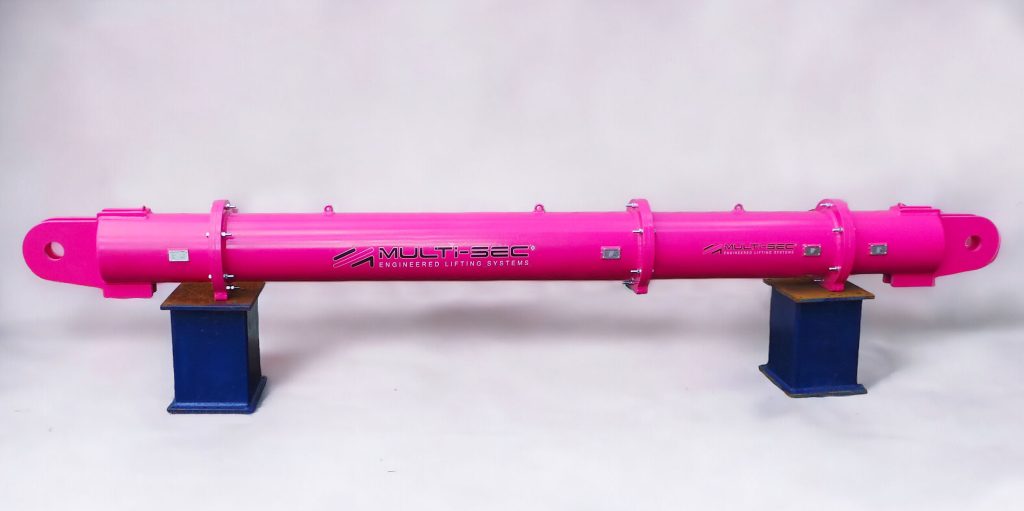

Introducing MultiSec Modular Spreader Beams

What Are Modular Spreader Beams?

Modular spreader beams from MultiSec offer a versatile, scalable lifting solution. These beams consist of interchangeable components that can be configured to suit different lifting requirements. Unlike fixed-length spreader beams, modular spreader beams can be adjusted on-site to handle varying load sizes and weights.

Benefits of Modular Spreader Beams from MultiSec:

Versatility: Adjustable configurations allow for quick changes in beam length to suit different loads and applications.
Cost-Effective: Modular systems reduce the need for multiple fixed-length beams, saving on both initial investment and long-term storage space.
Easy Storage and Transport: Can be disassembled into smaller components for easy transportation and storage, especially for projects requiring mobility.

Applications of a MultiSec Modular Spreader Beam:

Modular spreader beams are ideal for industries with varying load requirements, such as construction, offshore operations, and heavy equipment handling. They are also useful for projects that require lifting in remote or difficult-to-access locations due to their ease of transport and adaptability.

Choosing the Right Lifting Equipment for Your Project

When deciding between spreader beams vs lifting beams, it’s important to assess your project’s specific requirements.
Here are some factors to consider:

Load Type and Size: If you are lifting long, heavy, or fragile items that require even distribution of weight, a spreader beam or modular spreader beam from MultiSec is the ideal solution. For smaller, more compact loads, particularly in tight spaces, a lifting beam may be the better option.
Headroom Availability: In environments with low headroom, such as factories or manufacturing plants, lifting beams offer the necessary compact design to safely lift and move materials.
Project Flexibility: If your project requires adjustable equipment for different lifting scenarios, modular spreader beams offer the best combination of flexibility and efficiency.

Choosing between spreader beams vs lifting beams is essential for the success and safety of your lifting operation. At MultiSec, we offer a full range of spreader beams, lifting beams, and modular spreader beams tailored to meet the demands of various industries. Whether you need the stability of a Spreader Beam, the compact design of a Lifting Beam, or the versatility of a Modular Spreader Beam, MultiSec has the right solution for your project.

Contact us today to learn more about our lifting equipment and how we can help you complete your next lifting task safely and effectively.
