Adjustable H-Frames: Versatile Low-Headroom Lifting
Infinite Adjustability
Adapt to any load footprint instantly. With sliding transverse beams adjustable in 250mm increments, one Multisec H-Frame replaces the need for multiple fixed-length beams, saving you storage and capital costs.
Low Headroom Specialist
Engineered for precision lifts where vertical space is at a premium. By utilizing a single top lifting point, our H-Frames provide maximum lift height without the need for complex, high-clearance rigging.
Industrial Strength
Built for the toughest environments. Each frame is manufactured from high-tensile steel and fully compliant with BS EN 13155, ensuring site safety and long-term durability for loads up to 15 Tonnes.

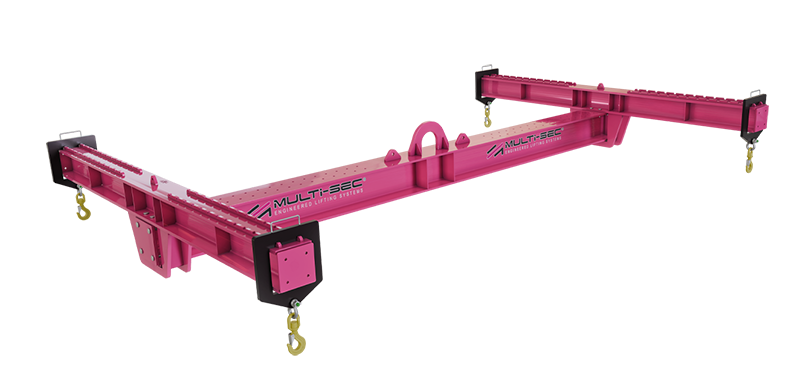

Multisec Adjustable H-Frames
The Adjustable H-Frame is designed for multiple configurations, it adapts effortlessly to widths ranging from 1m to 4m and lengths from 3m to 6m. With a WLL of 3, 5, 10 and 15 Tonnes, it ensures
stability and reliability for your heavy-duty projects.
From the compact 3-tonne unit to our heavy-lift 15-tonne system, every frame in the range is characterised by three core engineering principles:
Adjustable Versatility: Sliding transverse beams for precision load-matching.
Low-Headroom Design: Engineered for maximum lift height in restricted spaces.
Certified Durability: UK-manufactured to BS EN 13155 for long-term site safety.
Technical Specifications
Range Overview at a Glance
| Model Ref | WLL (Tonnes) | Main Beam Min/Max (m) | Transverse Beam Min/Max (m) | Adjustment Increments (mm) | Self-weight (kg) |
| MS-H-03 | 3 | 1.5 – 4.0 | 1.0 – 4.0 | 250 | 1012 |
| MS-H-05 | 5 | 1.5 – 5.0 | 1.0 – 2.5 | 250 | 940 |
| MS-H-10 | 10 | 2.0 – 6.0 | 1.0 – 3.0 | 250 | 1480 |
| MS-H-15 | 15 | 2.0 – 6.0 | 1.0 – 4.0 | 250 | 2630 |
Need a specific capacity or span not listed?
At Multisec, we specialise in custom-designed lifting solutions tailored to your exact project requirements.
