Multisec Multi-75 Modular Spreader Beam

The Multisec® Multi-75 is built to handle challenging lifting tasks with a WLL of 75 tonnes at a 12-meter span, extendable to 15 meters at a lower capacity. Its modular design allows easy reconfiguration, providing flexibility and reliability for various industrial and construction projects.

Why Choose the Multisec Multi-75 Modular Spreader Beam?

For larger-scale projects, the Multisec Multi-75 Modular Spreader Beam is engineered to meet your lifting challenges with a capacity of up to 75 tonnes. With an adjustable span of 12 meters at maximum capacity, extendable to 15 meters for lighter loads, this beam provides unparalleled performance.

Key Features:

  • High Load Capacity: Handles up to 75 tonnes, suitable for complex lifting tasks.
  • Flexible Design: Adjustable lengths from 12m to 15m ensure the beam fits your specific needs.
  • Durable and Reliable: High-quality steel construction for maximum safety.
  • Quick Set-up: Ready to be put to work immediately, making it the smart choice for any heavy lifting challenge.

Technical Specifications

Each assembly is made up of two end units and two drop links. Comprised with interchangeable struts that can be bolted into the assembly between each end unit to shorten or lengthen the beam to suit the requirements of your specific lift

Attention: Please ensure that the instructions for use have been fully read and understood before initial use of the Multi-Sec Modular Spreader Beam System. Failure to do so may result in serious injuries and/or material damage and eliminates manufacturers warranty.

What Size Shackle Do I Need?

Our selection of shackles is specifically chosen to perfectly match your spreader beam setup, ensuring optimal safety and performance.

For the Multisec Modular Multi-75 Spreader Beam, you’ll need the following:

  • Standard Bow Shackle (Top): 55t
  • Standard Bow Shackle (Bottom): 42.5t



There’s no need to look further—our compatible shackles are available for both sale and hire, allowing you to complete your lifting setup with ease and confidence.

Choose the right shackle to enhance your lifting operation and maintain the highest standards of safety and efficiency.

Order Form

Ready to buy a Modular Spreader Beam for your next project? Call our sales team on +44 (0)1642 240 672 or fill in the form below for a quote and expert advice on the best lifting solution for your needs. With our extensive range of modular spreader beams and lifting equipment, we ensure your project is completed safely, efficiently, and on time.

Explore the Modular Spreader Beam range

Multisec Multi-25 Modular Spreader Beam
Multisec Multi-13 Modular Spreader Beam
Multisec Multi-25 Modular Spreader Beam
Multisec Multi-25 Modular Spreader Beam
Multisec Multi-50 Modular Spreader Beam
Multisec Multi-50 Modular Spreader Beam
Multisec Multi-75 Modular Spreader Beam
Multisec Multi-75 Modular Spreader Beam
Multisec Multi-110 Modular Spreader Beam
Multisec Multi-110 Modular Spreader Beam
Multisec Multi-170 Modular Spreader Beam
Multisec Multi-170 Modular Spreader Beam
Multisec Multi-170 Modular Spreader Beam
Multisec Multi-250 Modular Spreader Beam

Can’t find the size you need?

Contact Us with your requirements

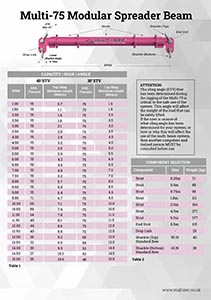

Multi-75 Technical Specifications
