Multisec Multi-50 Modular Spreader Beam

Step up your lifting capabilities with the Multisec Multi-50 Modular Spreader Beam, designed to handle up to 50 tonnes with unmatched precision and strength. This high-capacity beam is perfect for demanding lifting tasks where safety and adaptability are crucial.

Why Choose the Multisec Multi-50 Modular Spreader Beam?

When your lifting needs demand higher capacities, the Multisec Multi-50 Modular Spreader Beam is up to the task. Designed to handle up to 50 tonnes with spans reaching 9.5 meters at full capacity, and extendable to 12 meters for lighter loads, this beam provides the flexibility and strength needed for demanding environments.

Key Features:

50-Tonne Capacity: Capable of handling heavy loads with precision and safety.
Adjustable Span: Adapt the beam from 9.5m to 12m based on your load requirements.
Rugged Construction: Engineered to withstand harsh working conditions.
Fast Assembly: Bolt-on components ensure quick setup and adaptability.

Technical Specifications

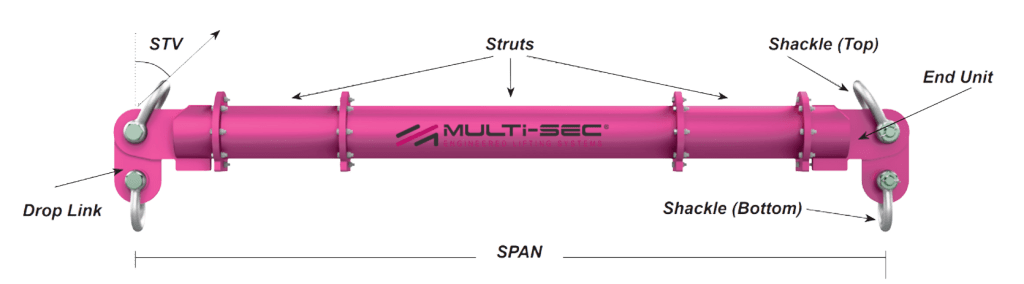

Each assembly is made up of two end units and two drop links. Comprised with interchangeable struts that can be bolted into the assembly between each end unit to shorten or lengthen the beam to suit the requirements of your specific lift

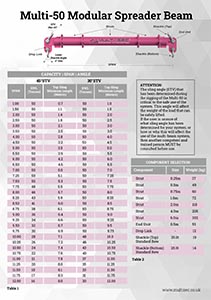

Download the Multi-50 Specifications
Download the Multi-50 Specifications

Attention: Please ensure that the instructions for use have been fully read and understood before initial use of the Multi-Sec Modular Spreader Beam System. Failure to do so may result in serious injuries and/or material damage and eliminates manufacturers warranty.

What Size Shackle Do I Need?

Our selection of shackles is specifically chosen to perfectly match your spreader beam setup, ensuring optimal safety and performance.

For the Multisec Modular Multi-50 Spreader Beam, you’ll need the following:

Standard Bow Shackle (Top): 35t
Standard Bow Shackle (Bottom): 25t

There’s no need to look further—our compatible shackles are available for both sale and hire, allowing you to complete your lifting setup with ease and confidence.

Choose the right shackle to enhance your lifting operation and maintain the highest standards of safety and efficiency.

Order Form

Ready to buy a Modular Spreader Beam for your next project? Call our sales team on +44 (0)1642 240 672 or fill in the form below for a quote and expert advice on the best lifting solution for your needs. With our extensive range of modular spreader beams and lifting equipment, we ensure your project is completed safely, efficiently, and on time.
