Multisec Multi-170 Modular Spreader Beam

The Multisec® Multi-170 Modular Spreader Beam offers exceptional lifting capabilities. Engineered for versatility, it can adapt to the most complex lifting environments, providing maximum strength and safety. Its modular components ensure easy configuration and transport, making it ideal for large-scale lifting operations.

Why Choose the Multisec Multi-170 Modular Spreader Beam?

The Multisec Multi-170 is part of our modular spreader beam range, expertly designed to meet the needs of heavy-duty lifting operations. With a working load limit (WLL) of up to 170 tonnes at spans of 14.5 meters, and the flexibility to extend to 19.5 meters at reduced capacity, this beam offers a versatile and robust solution for demanding lifting projects.

Key Specifications Include:

High Capacity: Capable of handling up to 170 tonnes, making it ideal for large-scale, heavy-duty lifts.
Adjustable Span: Ranges from 14.5 meters at full capacity to 19.5 meters for lighter loads, giving operators flexibility for various lifting configurations.
Rugged Construction: Built with high-strength steel for exceptional durability, ensuring reliability even in the most challenging conditions.
Modular Flexibility: Incorporates interchangeable struts, end units, and drop links, allowing for quick configuration changes to meet specific lift requirements.
Ease of Assembly: The bolted design enables quick assembly and disassembly, reducing downtime and improving operational efficiency.

Technical Specifications

Each assembly is made up of two end units and two drop links. Comprised with interchangeable struts that can be bolted into the assembly between each end unit to shorten or lengthen the beam to suit the requirements of your specific lift

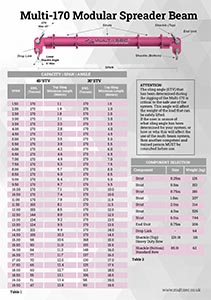

Download the Multi-170 Specifications
Download the Multi-170 Specifications

Attention: Please ensure that the instructions for use have been fully read and understood before initial use of the Multi-Sec Modular Spreader Beam System. Failure to do so may result in serious injuries and/or material damage and eliminates manufacturers warranty.

What Size Shackle Do I Need?

Our selection of shackles is specifically chosen to perfectly match your spreader beam setup, ensuring optimal safety and performance.

For the Multisec Modular Multi-170 Spreader Beam, you’ll need the following:

Heavy Duty Bow Shackle (Top): 120t
Standard Bow Shackle (Bottom): 85t

There’s no need to look further—our compatible shackles are available for both sale and hire, allowing you to complete your lifting setup with ease and confidence.

Choose the right shackle to enhance your lifting operation and maintain the highest standards of safety and efficiency.
