Multisec Products
DNV Type Approved Modular Spreader Beams & Heavy Duty Multi-Point Lifting Beams
Multisec is the leading UK manufacturer of certified, high-capacity lifting equipment, offering both our core range of DNV Type Approved Modular Spreader Beams and robust Multi-Point Lifting Beams. Instantly recognisable by our iconic pink beams, our products are engineered for maximum safety, efficiency, and precision on complex offshore, civil, and marine projects worldwide.

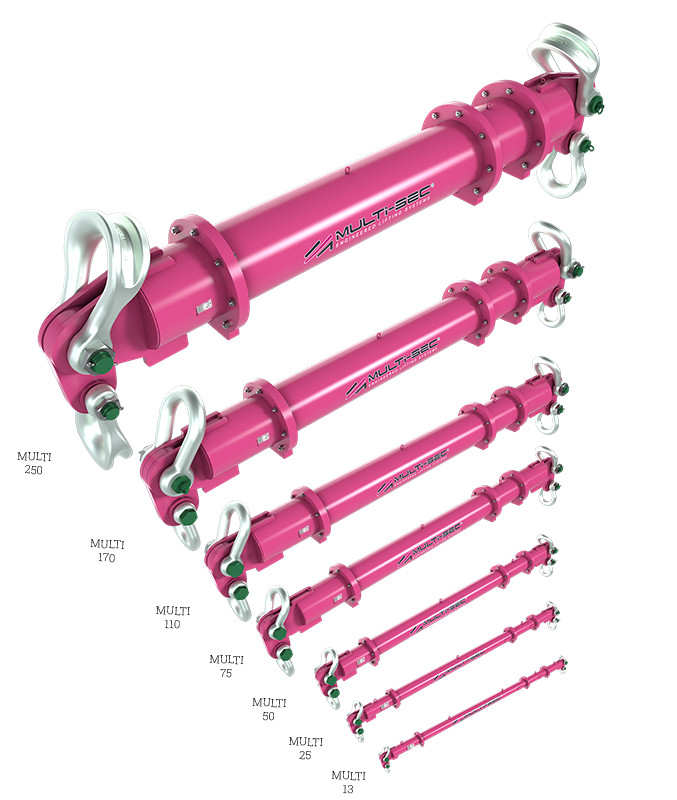

Multisec Modular Spreader Beams
DNV Type Approved Beams from 13T to 250T WLL
Multisec Modular spreader beams are lifting solutions designed to safely handle heavy and oversized loads using a crane. Unlike fixed beams, they are built from interchangeable struts and end fittings that can be assembled in different lengths and configurations to suit each lift.
This modular design makes them highly versatile – a single kit can be adapted for multiple projects, reducing the need to purchase or hire several different beams. It also improves transport and storage efficiency, as components can be broken down into manageable sections, saving space and lowering logistics costs.
Engineered for strength, safety, and flexibility, modular spreader beams are widely used across industries such as construction, offshore, ports, and heavy engineering.

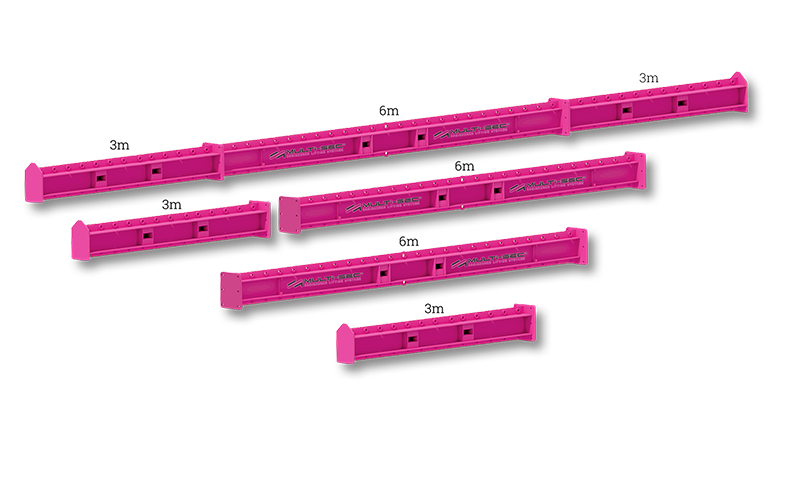

Multisec Multi-Point Lifting Beams
One Beam. Multiple Configurations
With capacities up to 300 tonnes and spans up to 12 meters, the Multi-Sec Multi-Point Beam provide a safe, adaptable, and precise lifting solution for projects ranging from smaller assemblies to large, complex lifts.
The system can be arranged in three configurations:
Centre Point Lift – A single lifting point setup available in 3m or 6m beam lengths, ideal for straight vertical lifts.
Spreader Beam Setup – This setup uses angled top slings for even load
distribution, available in 3m, 6m, 3m + 6m or 3m + 6m + 3m spans.
Semi-Spreader Beam Setup –
An arrangement offering flexibility where space or load geometry is restricted,
available in 3m + 6m or 3m + 6m + 3m spans.
