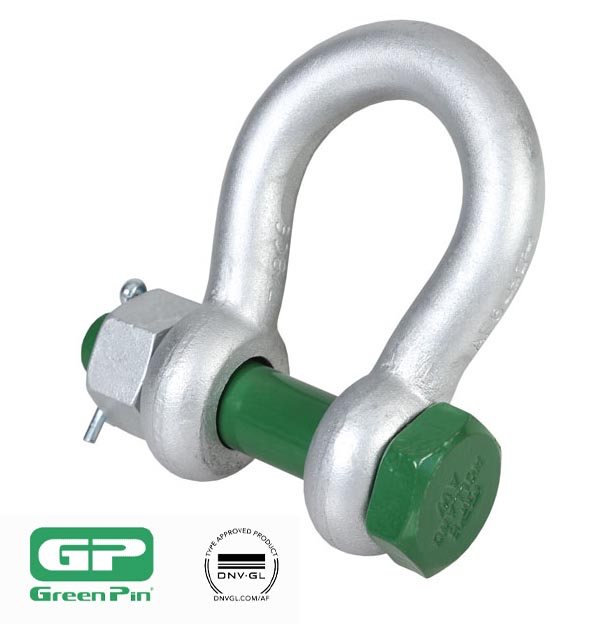

Green Pin® Standard Bow Shackle with Safety Nut and Bolt Pin

Discover the Green Pin® Standard Bow Shackle with Safety Nut and Bolt Pin—your go-to solution for safe, efficient, and durable lifting operations. Manufactured by Green Pin, a leader in rigging hardware, these shackles are designed to meet the rigorous demands of lifting, towing, and securing heavy loads in industrial, construction, and maritime applications.

Product Specifications:

Material: High-grade steel, hot-dip galvanized for corrosion protection.
Working Load Limit (WLL): Available from 0.5T to 85T, catering to a wide range of lifting needs.
Safety Factor: 6:1, providing a reliable safety margin for lifting operations.
Certification: Complies with EN 13889, ASME B30.26, and other relevant standards.
Markings: Clearly marked with size, grade, and WLL for easy identification and inspection.

Key Benefits of Green Pin® Bow Shackles:

Superior Safety Mechanism: Equipped with a safety nut and bolt pin, these shackles offer enhanced security by preventing accidental release, ensuring peace of mind during high-stakes lifting operations.
Robust Construction: Made from high-tensile steel, these shackles provide exceptional strength and durability, making them ideal for the toughest jobs.
Corrosion Resistant: A hot-dip galvanized finish protects the shackle against corrosion, extending its life even in harsh environments, such as marine or outdoor settings.
Certified for Performance: Each shackle is thoroughly tested and certified according to EN 13889 and other leading standards, ensuring that it performs reliably under rated loads.
Versatility in Application: Perfect for multi-directional loading, the bow shape allows for flexibility in rigging setups, accommodating various slings and chains.

Downloads

Technical specifications
Technical specifications

What Shackle do I Need?

Selecting the correct shackle size is crucial for ensuring safe and efficient lifting operations, especially when used with our Multisec Modular Spreader Beams. The size of the shackle you need depends on the load weight, the lifting configuration, and the compatibility with the lifting equipment in use.

If you’re unsure which shackle size is right for your application, contact our team for personalised advice. We’ll help you select the correct Green Pin® shackle that aligns with your lifting needs and ensures a safe and efficient operation.

Order Form

Shackles are available for purchase and hire. Call our sales team on +44 (0)1642 240 672 to place your order or fill in the form below for a quote.

Looking for a specific Green Pin Shackle? Contact us with your requirements.

Best Practices for Using Bow Shackles Safely

Inspect Before Use: Regularly inspect shackles for any signs of wear, corrosion, or deformation to maintain safety standards.
Proper Pin Installation: Always ensure the bolt pin is correctly threaded and secured with the safety nut to prevent accidental release.
Avoid Side Loading: Ensure the load is aligned with the shackle body to prevent side loading, which can weaken the shackle.
Do Not Overload: Always adhere to the Working Load Limit marked on the shackle to avoid potential failures.
